energy-saving ball mill made by Huahong Machinery

Energy-saving ball Mill
1.Specifications

1)Low price and consumption
2)Special design
3)Reduce the energy consumption by 30%
4) ISO:9001:2008

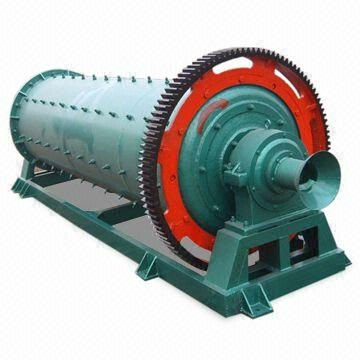

Energy-saving Huahong Ball Mill1.Ball Mill IntroductionBall mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.

2.Ball Mill Application

Ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.

3.Ball Mill Working Principal

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the singlelayer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

4.Ball Mill Features

1.Our Ball Mill can be divided into dry type ball mill and wet type lattice ball mill.

2.Our Ball Mill is widely used in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.

3.Reduce energy consumption, Simple structure, Processing capacity.

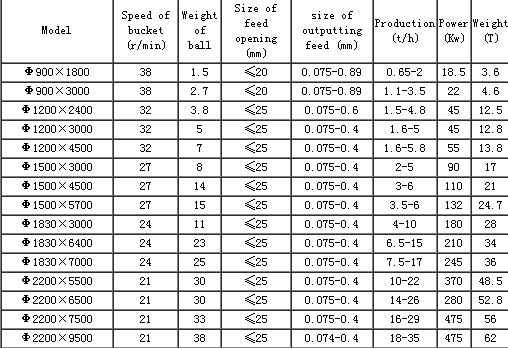

5.Ball mill parameters:

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
