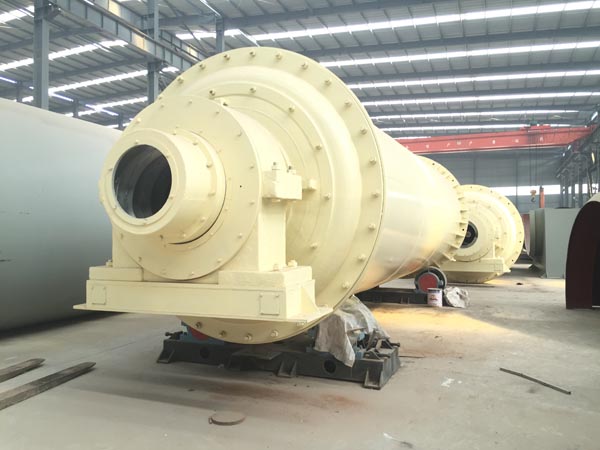

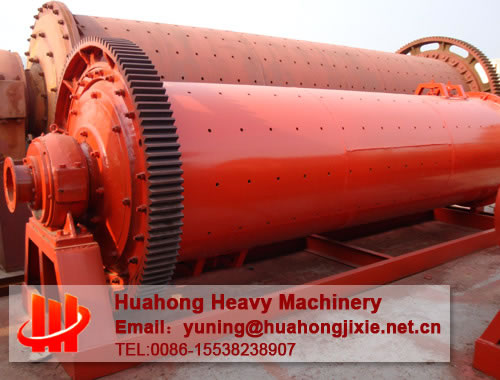

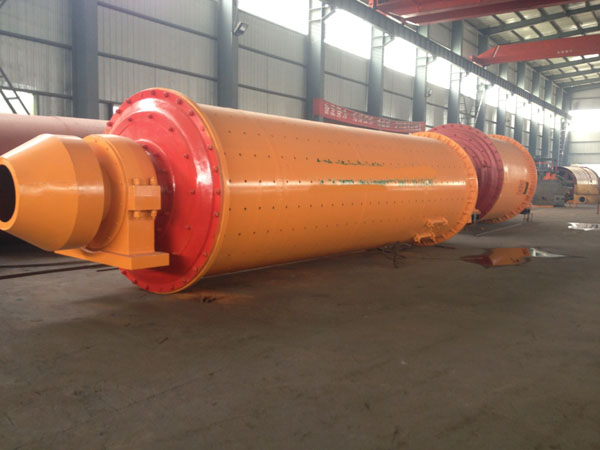

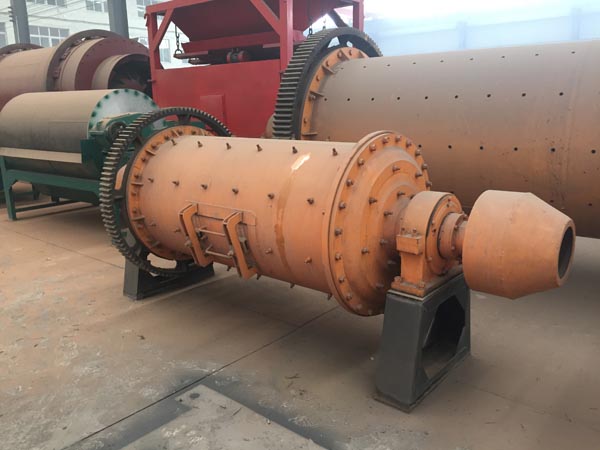

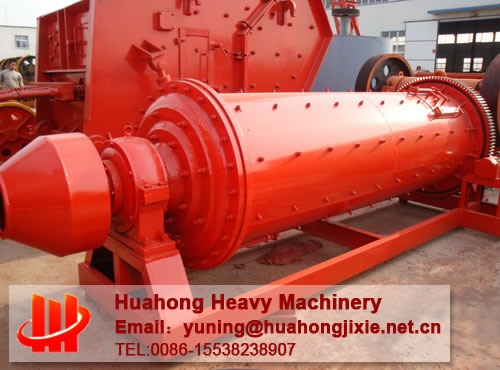

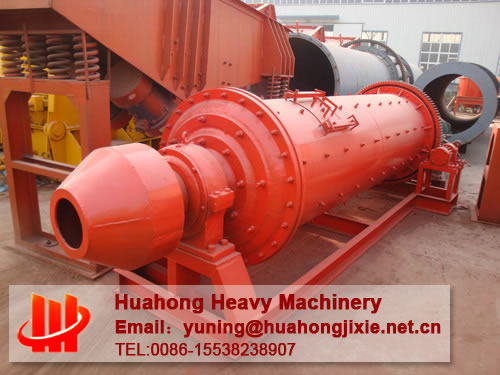

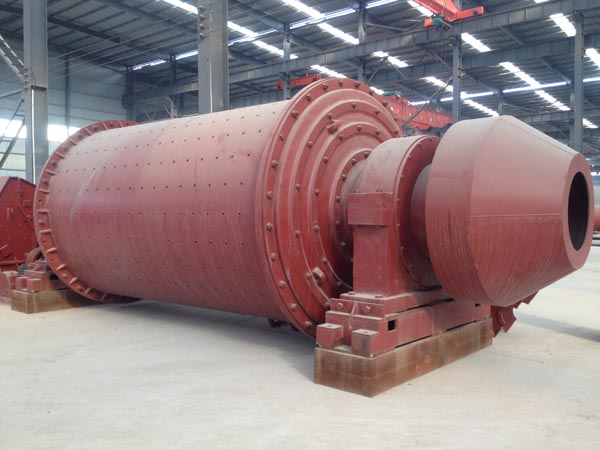

Energy saving cone ball mill



Ball Mill Application:

are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Ball Mill Features:

1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

11)Complet ely enclosed welded design in high-grade steel.

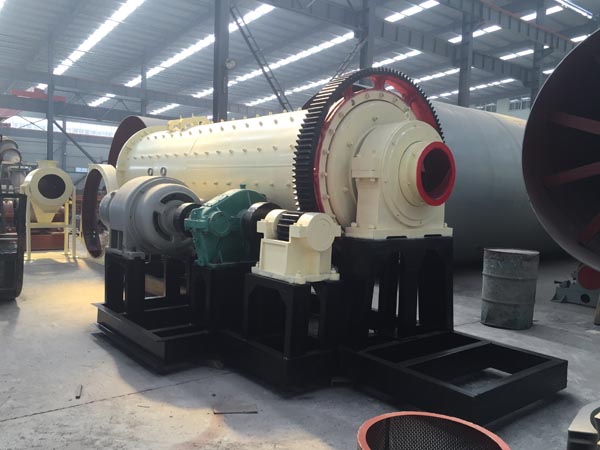

- Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
- Product discharge via slots located around the periphery of the drum.

Ball mill Working Principle:

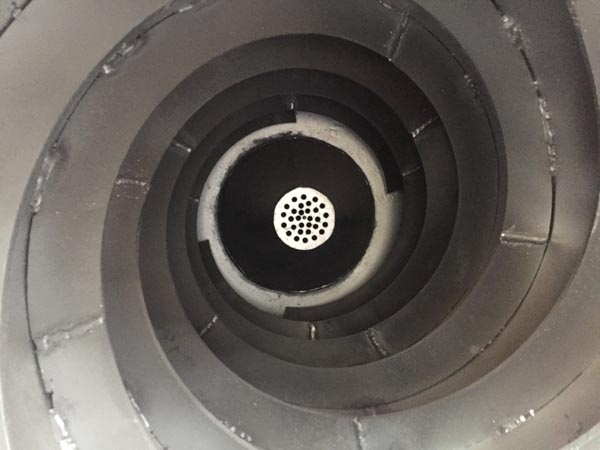

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specifications of Ball Mill

Model

Speed (r/min)

Max. weight of balls (t)

Input size (mm)

Output size (mm)

power (kw)

Capacity (t/h)

Weight(t)

Φ900×1800

37

1.8

≤15

0.075-0.89

15

0.5-2

3.4

Φ900×2100

37

2.3

≤15

0.075-0.4

18.5

0.4-2

3.9

Φ900×3000

35

3.85

≤25

0.075-0.4

30

1.1-2.5

7.78

Φ1200×2400

35

4.6

≤25

0.075-0.4

30

1.3-3.2

8.65

Φ1200×2800

35

5.4

≤25

0.075-0.4

37

1.5-3.7

10.02

Φ1200×4500

35

8.6

≤25

0.075-0.4

45

2.7-6.79

14

Φ1500×3000

29

9

≤25

0.047-0.4

75

3.3-8.2

14.12

Φ1500×3500

29

10.5

≤25

0.047-0.4

75

3.3-8.5

15.64

Φ1500×4500

29

13.5

≤25

0.047-0.4

90

4.5-12

20

Φ1500×5700

29

17

≤25

0.047-0.4

110

2.6-14

21.5

Φ1830×3000

24

13.5

≤25

0.047-0.4

135

4-15

28

Φ1830×3600

24

14

≤25

0.047-0.4

135

4-15

29

Φ1830×4500

24

20

≤25

0.047-0.4

155

4-19

32

Φ1830×7000

24

31.5

≤25

0.047-0.4

210

6-22

36.5

Φ2100×3000

22

18

≤25

0.047-0.4

210

6.4-28

40.79

Φ2100x3600

22

20

≤25

0.047-0.4

210

7-28

42

Φ2100×4000

22

21.5

≤25

0.047-0.4

210

7.6-28

43.45

Φ2200×3600

21.7

25

≤25

0.047-0.4

245

5.2-32

44

Φ2200×7000

21.7

46

≤25

0.047-0.4

380

15-38

63

Φ2400×3600

21

28

≤25

0.047-0.4

320

8-60

47

Φ2400×4500

21

35

≤25

0.047-0.4

380

8.5-60

70.5

Φ2700×3600

20.7

40

≤25

0.047-0.4

400

12-80

75.5

Φ2700×4500

20.7

48

≤25

0.047-0.4

430

12-90

102

Φ3200×4000

18

65

≤25

0.047-0.4

800

30-180

137
