Briquette shaping machine

Your position: Home > Products > Briquette shaping machine

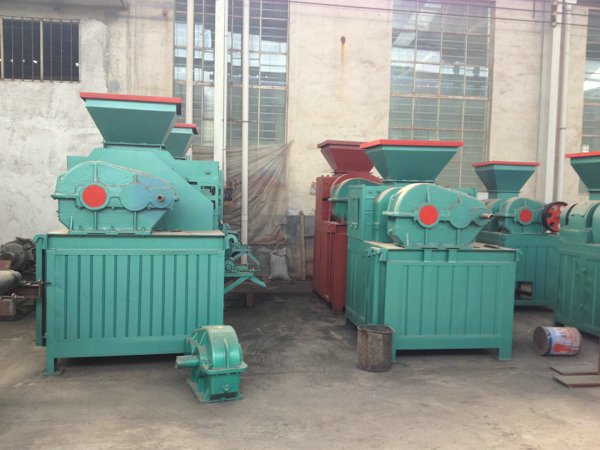

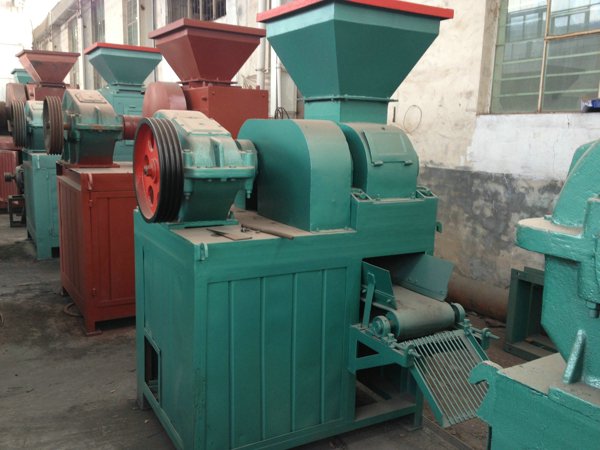

Ball press mahcine production line




Coal ball press machine major role and characteristics:

The machine can supress all kinds of mineral powder, metal powder, coal powder, coke powder and other materials to make them molded. Because of the mandatory squeeze rollers , so the products have the three high characteristics : high density ,high strength ,high hardness.
Because of the mandatory squeeze rollers, so the products have high density, high strength, high hardness, and the local roll is used in 650Mn hard materials with good wear resistance. Effectively improve the life of a roll.

Working Principle of coal ball press machine:

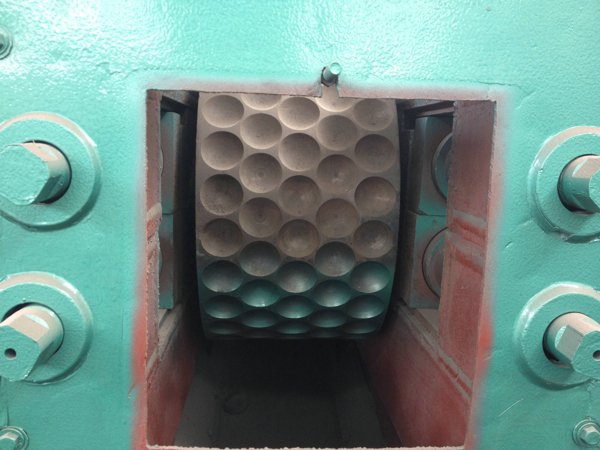

This series of coal ball pressure machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

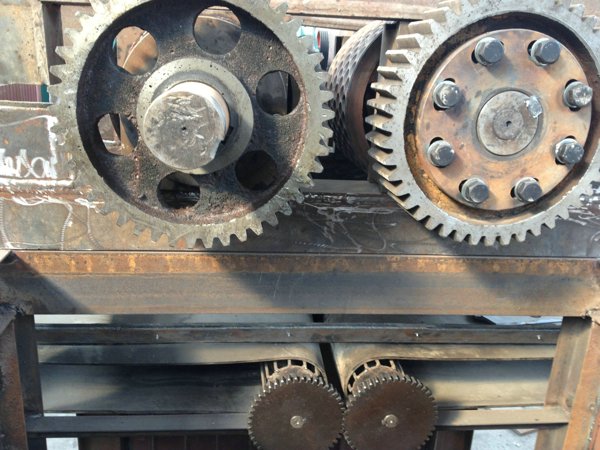

After 30 years of concentrated research and development, basing on the original two-roll coal ball press machine, our company has also developed a good four-roll coal ball press machine . Four-roller coal ball press machine working principle is that the two vice-roll pre-suppress materials in the form of pipeline to lay a solid foundation for the finished ball. For finished products heroes ball solid foundation. After the main roll for feeding and secondary pressure, the pressure of materials multiplied, squeeze the ball more solid product. Reached a multiplier effect. Loose on the local materials, such as coke, iron skin, dust powder effects of sludge and other materials is very obvious.

Our conpany is meeting the growing needs of domestic and international markets for all coal ball press machine series carried out in accordance with international advanced level to improve the marketability of the market and the new specifications.

Main Technical Parameter of coal ball press machine:


Modal

Reducer

Speed

Ratio

Roller

Size

Speed of

Mainshaft

Model of

Motor

Power

Output

Outline Dimension

(m)

YHQ360-4

ZQ350

1:31.5

Φ360*250

15-17r/min

Y132M-4

7.5KW

3-5T/h

2.26×1.53×1.98

YHQ360-2

ZQ350

1:31.5

Φ360*250

15-17r/min

Y132M-4

7.5KW

3-5T/h

2.26×1.53×1.76

YHQ400-4

ZQ400

1:31.5

Φ400*250

15-17r/min

Y160M-4

11KW

4-7T/h

2.3×1.38×1.96

YHQ400-2

ZQ400

1:31.5

Φ400*250

15-17r/min

Y132M-4

7.5KW

4-7T/h

2.2×1.38×1.91

YHQ430-4

ZQ400

1:31.5

Φ430*250

15-17r/min

Y160M-4

11KW

5-8T/h

2.4×1.53×2

YHQ430-2

ZQ400

1:31.5

Φ430*250

15-17r/min

Y132M-4

7.5KW

5-8T/h

2.3×1.53×1.9

YHQ500-4

ZQ500

1:31.5

Φ500*350

15-17r/min

Y180L-4

22KW

8-10T/h

2.61×1.75×2.35

YHQ500-2

ZQ500

1:31.5

Φ500*350

15-17r/min

Y160L-4

15KW

8-10T/h

2.61×1.75×2.1

YHQ650-4

ZQ650

1:31.5

Φ650*350

15-17r/min

Y1200L-4

30KW

12-20T/h

3.42×2×2.4

YHQ650-2

ZQ650

1:31.5

Φ650*350

15-17r/min

Y180L-4

22KW

12-20T/h

3.42×2×2.2

YHQ750-4

ZQ750

1:31.5

Φ750*380

14-16r/min

Y200L-4

Y112M-4

30KW

4KW

25-30 T/h

3.7×2.55×2.6

YHQ850-4

ZQ850

1:31.5

Φ850*436

14-16r/min

Y225S-4

Y112M-4

37KW

4KW

35-40 T/h

3.9×2.6×2.7

YHQ1000-4

ZQ1000

1:31.5

Φ1000*530

14-16r/min

Y225M-4

Y112M-4

45KW

4KW

40-45 T/h

4×2.8×2.8
