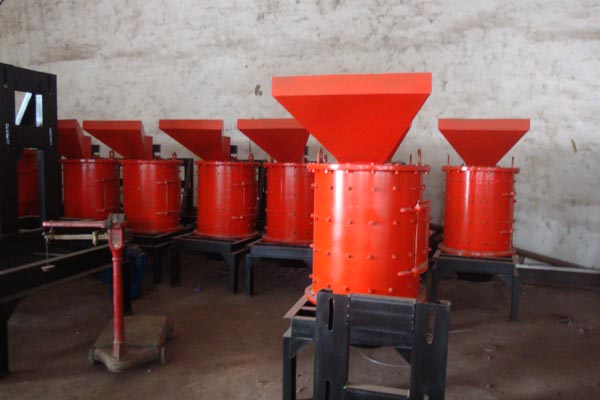

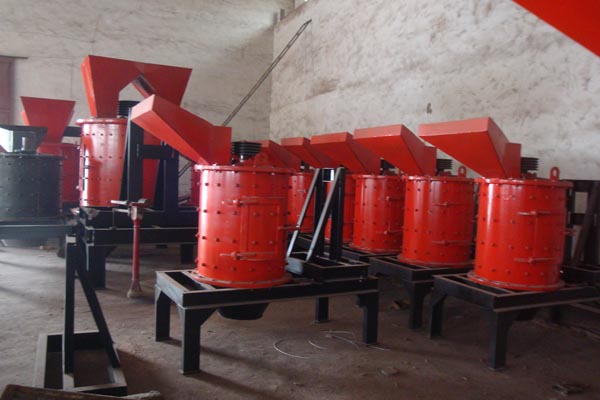

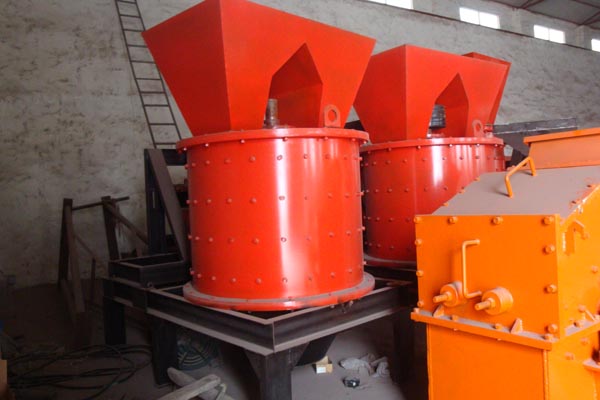

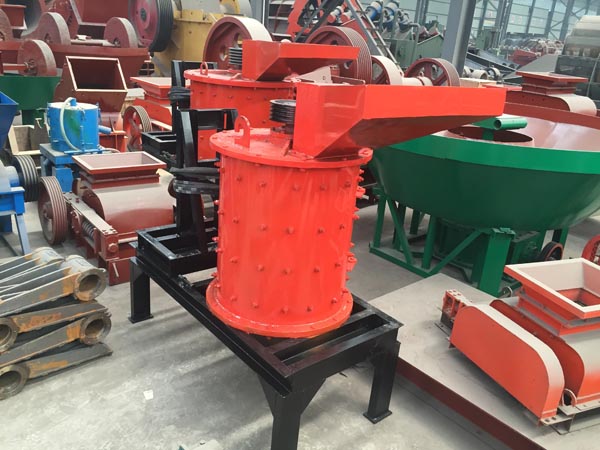

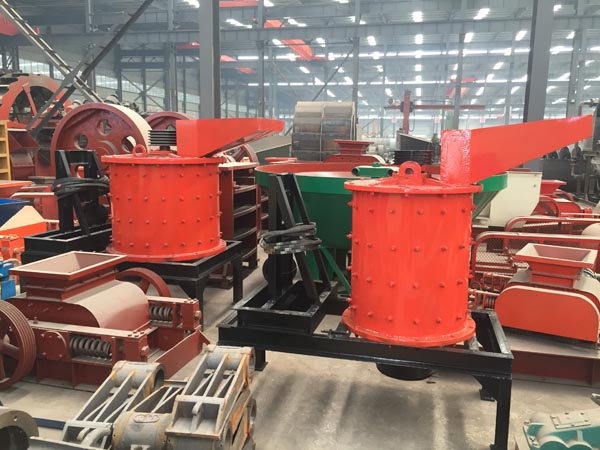

Main use of Combination Crusher
Vertical combination crusher is a kind of new fine and coarse crushing, which is developed according to purified parameter based on the crushing technology at home and aboard. The Vertical combination crusher whose compression strength is not more than 140MP and humidity is not more than fifteen percent is suitable for building materials, mining, metallurgy and chemical industry for crushing limestone, clinker, coal and processing or crushing of other ore. These crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.
The feature of Vertical combination crusher
Large capacity; High broken ratio; Low energy consumption; Excellent tightness; Stable operation; Easy maintenance.
Technical parameters of Combination crusher
Model | 800 | 1000 | 1250 | 1500 | 1750 | |
Rotor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 | |
Cylinder height(mm) | 800 | 850 | 850 | 1000 | 1410 | |
Main shaft Rotation speed (Rotation/min) | 1350 | 970 | 740 | 650 | 600 | |
Feeding size(mm) | 50 | 70 | 100 | 100 | 100 | |
Discharging size(mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | |
Processing capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 | |
Motor | Power(kw) | 22 | 55 | 75 | 110 | 132 |
Rotation speed | 1440 | 1440 | 750 | 750 | 750 | |
Dimensions (L*W*H)(mm) | 2200*860*1980 | 2700*1160*2000 | 2800*1400*2730 | 3100*1900*2300 | 3350*2100*2800 | |
Weight(t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 | |
