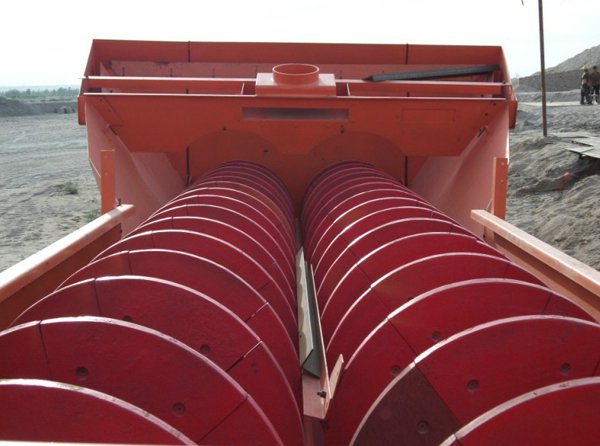

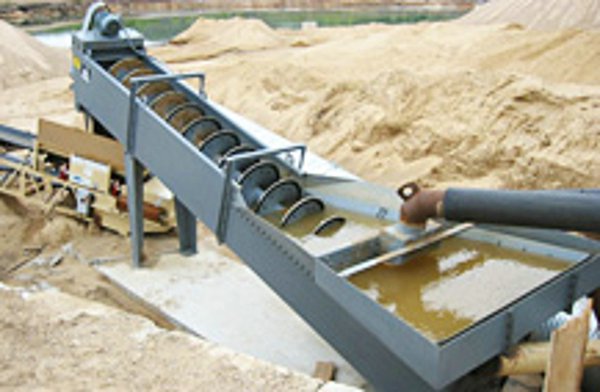

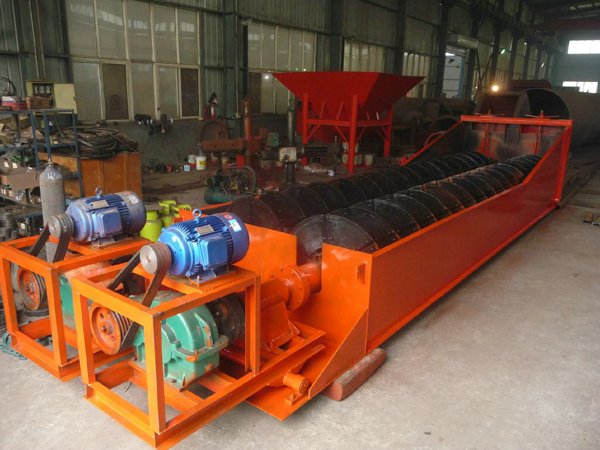

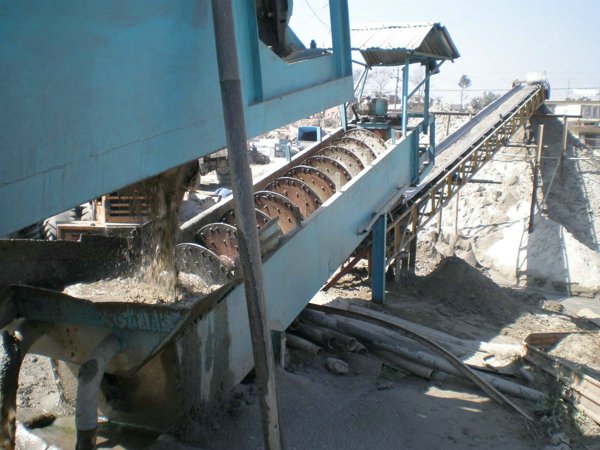

Spiral classifier introduction:
Our spiral classifiers are widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing. Advantages are simple structure, reliable working condition and convenient operation.
Spiral classifier working principle:
According to the principle that different grains are with different specific gravity and sedimentation rate in the liquid, the fine ore flows in the water and the coarse ore sinks in the bottom. The classifier that has machine grading by discharging from the top can filtrate the materials and send coarse materials to the feeding mouth and discharge the fine material from the pipe. The seat of the machine adopts channel steel and body adopts armor plate and the spiral axle adopts wrought iron, so it??s durable. The lifting equipments have two types, by electricity and hand.
Main Techincal Parameters of Spiral Classifier:
Model | Spiral diameter (mm) | Trough length (mm) | Spiral rotation speed (r/min) | Capacity(t/d) | Power(kw) | Weight (t) | ||
Return sand | Overflow | Driving | Flifting | |||||
FG7.5 | 750 | 5500 | 6-10 | 340-570 | 65 | 3.0 | Manual | 2.7 |
FG10 | 1000 | 6500 | 5.0-8.0 | 675-1080 | 110 | 5.5 | Manual | 4.43 |
FG12 | 1200 | 6500 | 5.0-8.0 | 1170-1870 | 155 | 5.5 | 1.5 | 8.7 |
FG15 | 1500 | 8400 | 4.0-6.0 | 1830-2740 | 235 | 7.5 | 2.2 | 12.5 |
FG20 | 2000 | 8400 | 4.0-6.0 | 3240-5400 | 400 | 11 | 2.8 | 20.5 |
FG24 | 2400 | 9210 | 3.6 | 4650-7450 | 580 | 15 | 3.0 | 25.6 |
FG30 | 3000 | 1250 | 3.2 | 11625 | 890 | 22 | 4.0 | 37.7 |
2FG12 | 1200 | 6500 | 5.0-8.0 | 2340-3740 | 310 | 5.5x2 | 1.5x2 | 14.0 |
2FG15 | 1500 | 8400 | 4-6.0 | 3660-5480 | 470 | 7.5x2 | 1.5x2 | 21.1 |
2FG20 | 2000 | 8400 | 3.0-5.5 | 7780-11880 | 800 | 11x2 | 2.8x2 | 36.5 |
2FG24 | 2400 | 9210 | 3.6 | 13600 | 1160 | 15x2 | 3x2 | 46.8 |
2FG30 | 3000 | 12500 | 2.0-3.2 | 14600-23400 | 1785 | 22x2 | 4x2 | 73.0 |
