Stone crusher


Introduction of stone crusher:

Stone crusher is also called rock crusher. The crushing working is divided into coarse crushing, intermediate grinding and fine grinding according to the discharging and feeding granularity. The common sand equipments are jaw crusher, impact crusher, shaft impact crusher, compound crusher, single hop hammer crusher, central hammer crusher, hammer crusher, cone crusher, roller crusher and so on.

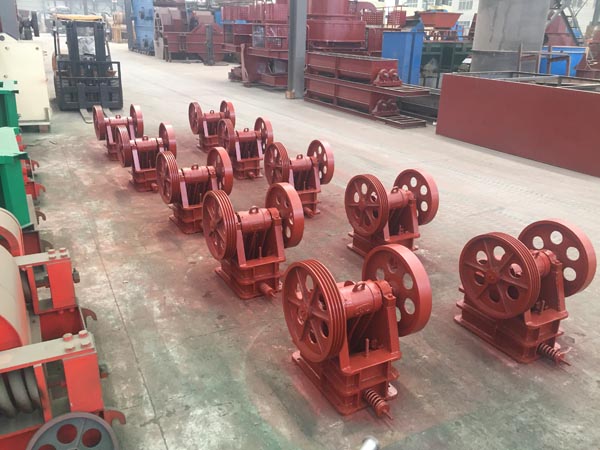

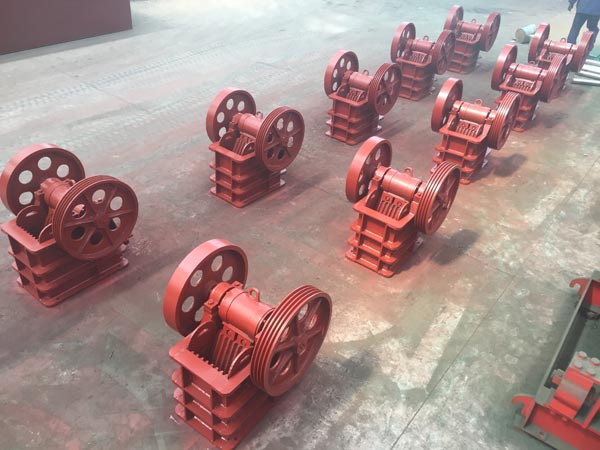

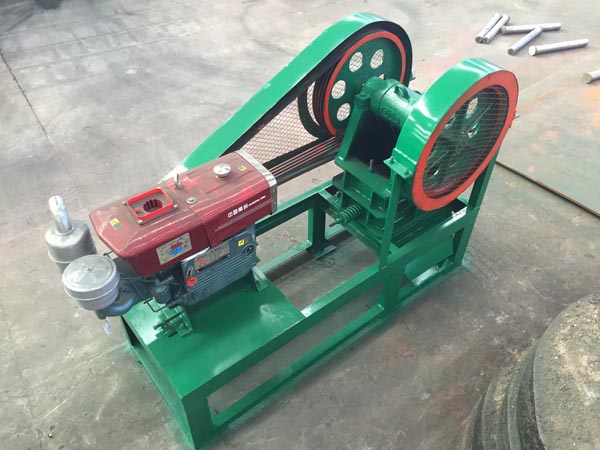

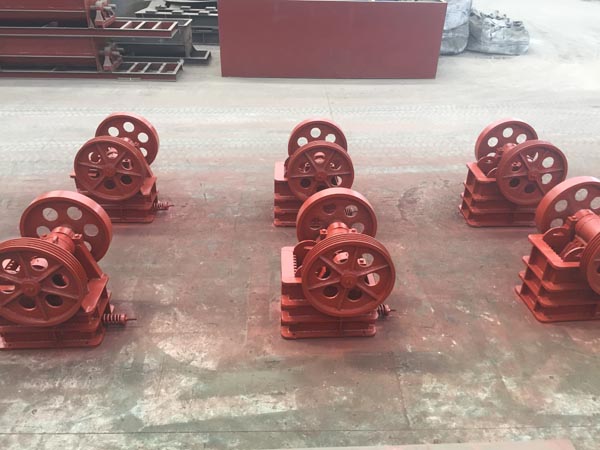

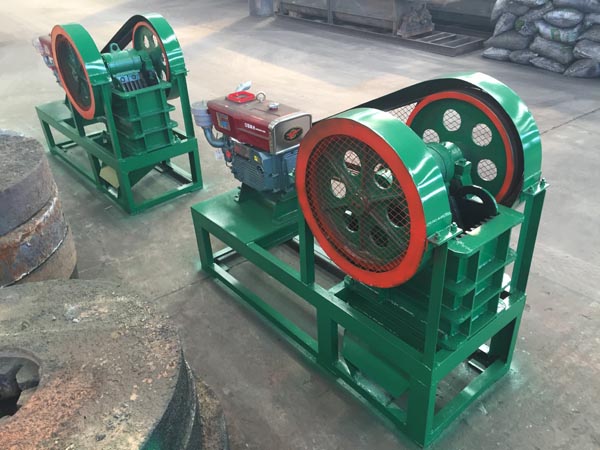

Jaw crusher is a widly used kinds of stone crusher and jaw crusher is the machine which uses the sequenzing action and flexion generated from the two jaw plate impacting the materiel. It can coarse grind and intermediate grinding all kinds of hard materiel. Jaw crusher's curshing structure is composed of fixed jaw plate and movable jaw plate. The materiel is crushed when the two jaw plate comes together and the material with size less than discharging opening will be discharged from the bottom when the two jaw plates departed. The crushing movements are carried out intermittently. This kind of crushing machine is widely used in various industries such as mineral selection, construction material,silicate, ceramics, etc.

Cone crusher is a kinds of stone crusher which is applied in intermediate crushing or fine crushing. The uniformity of discharging size is ususally higher than coarse crushing. Therefore, the bottom of crushing chamber is set by one parallel section, and the rotating speed of crushing cone must be promoted to make sure more than once press on the material of the parallel section.

Roller crusher is a kinds of stone crusher. Roller crusher is the machine that uses roller surface's friction force to deliver the material to crushing zone, and then the material is cracked by extrusion. The roller crusher is used for coarse crushing, or when large size reduction ratio is necessary. The roller surface usually appears teeth or groove to enhance cleaving force. Roller crusher can be divided into single roller crusher, double roller crusher, or mutiple roller crusher based on roller quantity. This crusher can be used for coarse crushing, medium or fine crushing of hard and medium hard material such as coal, limestone, clinker or feldspar, and so on.

Hammer crusher is also a kinds of stone crusher. Hammer crusher has the advantages of large reduction ratio, even discharging size, less powder, low energy consumption, etc. But due to easy damagable hammer, the crusher is suitable for crushing hard material. Besides, it is also not suitbale for crushing material with high humidity or clay to prevent grid jam. So this kind of of crusher is usually used for crushing brittle material under middle hardness such as limestone, shale, coal, gypsum, chalk, etc.


Impact crusher is a kinds of stone crusher. Impact crusher is the machine that crushes material by repetitive high-speed impact of hammer and springback of impact plate. The hammer is fixed to high-speed rotating roller, and several impact plates are outlayed along the crushing chamber at different angles.

Combined crusher is a kinds of stone crusher which is used in contruction material, mining, metallurgy or chemical industries for crushing limestone, clinker, coal or other ores with compression strength less than 140MPa and humidity less than 15%.

[Keywords: Stone crusher]
