Vibrating Feeder


Introduction to Vibrating feeder/Vibratory feeder

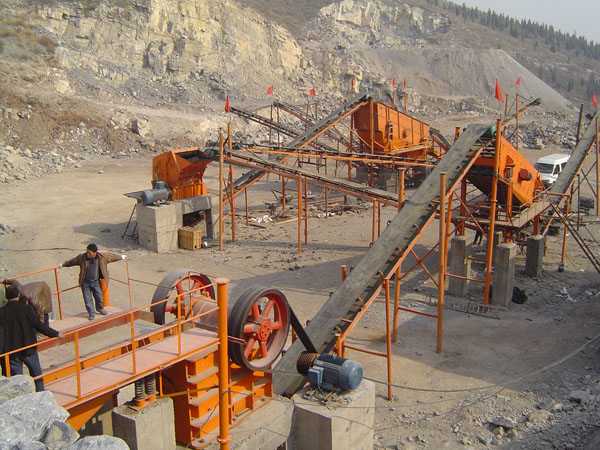

Vibrating feeder is also named Vibratory feeder. Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, buildingmaterial, silicate and chemical industry in the crushing and screening plants.

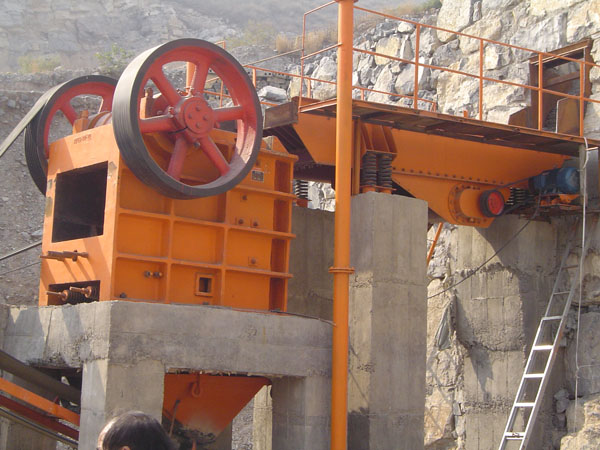

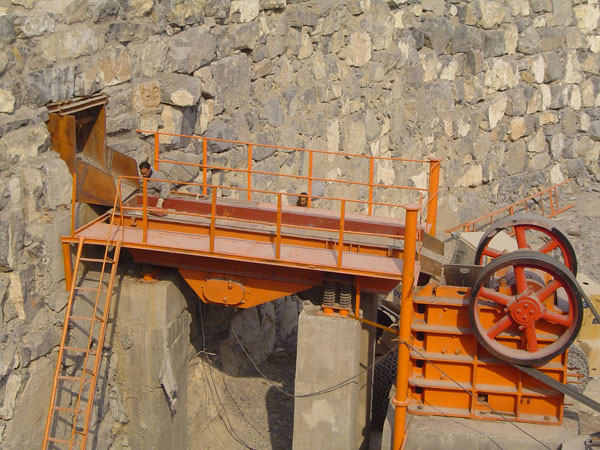

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.

Vibrate feeding engine's characteristics

This series vibration feeding engine have many characteristics such as steady vibration, reliable operation, low noise, low energy consumption, not flushes the material phenomenon, the life to be long, the maintenance is convenient, the weight is light, the volume is small, the equipment adjustment is easy, the overall performance are good, when using the enclosed structure fuselage may prevent the dust pollution. Its structure is simple and works stably and easy to adjust and install, and it is convenient to maintain and take care for its light weight and small size. You can alert and control the flowing quantity at any time and it is convenient and steady for operation. The eccentric block is its violent vibration resource, so it has fine regulating performance, without materials clashed situation.

Technical parameters of vibrating feeder

Model

Max

.Feeding

(mm)

Pocessing

Capacity

(t/h)

Motor

power

(kw)

Total

Weight

(kg)

Trough

Size

(mm)

Dimensions

(L*W*H)

(mm)

GZD-650*2300

300

80

1.1*2

2798

650*2300

2300*1360*780

GZD-750*2500

350

100

1.1*2

3260

750*2500

2500*1460*780

GZD-850*3000

400

120

3*2

3607

850*3000

3110*1800*1600

GZD-1000*3600

500

150

5.5*2

3895

1000*3600

3850*1950*1630

GZD-1100*4200

580

240

5.5*2

4170

1100*4200

4400*2050*1660

GZD-1100*4900

580

280

7.5*2

4520

4900*1100

5200*2050*1700

GZD-1300*4900

650

450

11*2

5200

4900*1300

5200*2350*1750
