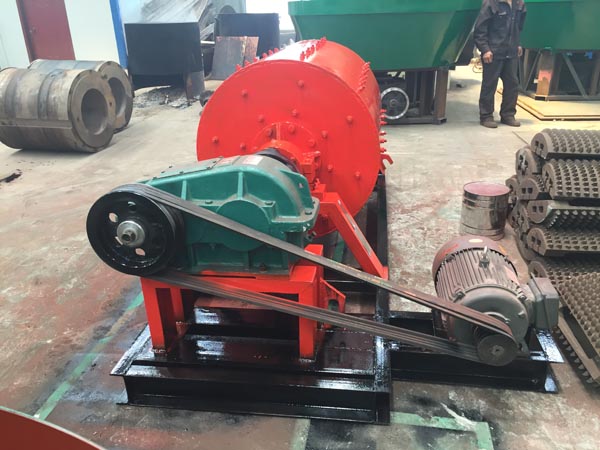

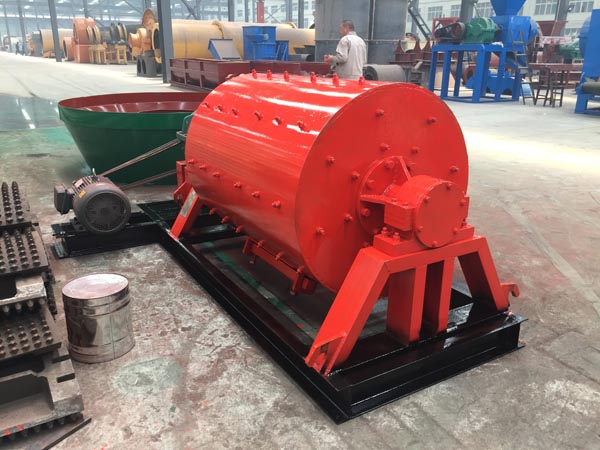

Batch ball mill is also called ceramic ball Mill, with drying work and weting working by batch. It is used for fine grinding of feldspar, quartz, clay, ore, etc.

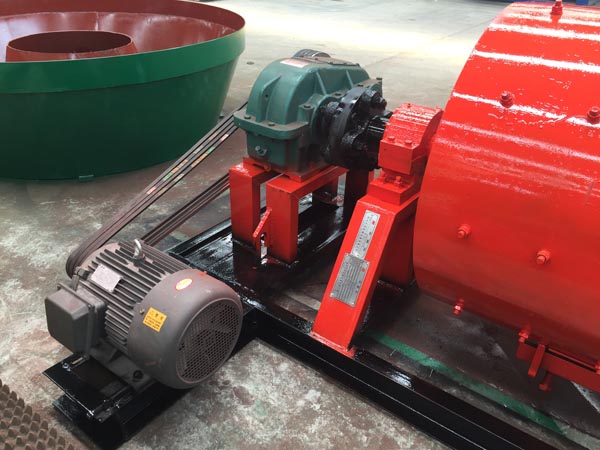

Batch ball mill (ceramic ball mill) is mainly used for mixing, milling of the materials. It works with less energy but produces high fineness product. It has two types, wet mills and dry mills. The machine could use different lining board according to product requirement to satisfy different customers requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is divided into integral type and freestanding type. Advantages of the machine are lower investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc. It is suitable for mixing and milling of general and special materials. Users can choose the proper model, lining board and media as per the factors, such as: materials specific gravity and hardness, as well as output, etc
Main Technical Parameters of Batch Ball Mill (Ceramic Ball Mill)
Model | Capacity (t/time) | Rotation speed(r/min) | Motor power(kw) | Weight (t) |
TCQ910*1120 | 0.2 | 36 | 5.5-11 | 2.6 |
TCQ1200*1400 | 0.5 | 32 | 11-18.5 | 4.3 |
TCQ1500*1800 | 1 | 28 | 15-22 | 6.5 |
TCQ1800*2100 | 1.5 | 26 | 18.5-30 | 8.8 |
TCQ2100*2100 | 2.5 | 22 | 22-37 | 13 |
TCQ2200*2400 | 3 | 20 | 28-45 | 15 |
TCQ2500*2900 | 5 | 16 | 37-55 | 19 |
TCQ2800*3700 | 8 | 14.5 | 55-75 | 26 |
TCQ3000*3700 | 10 | 14 | 75-90 | 32 |
