Powder Maker

Your position: Home > Products > Powder Maker

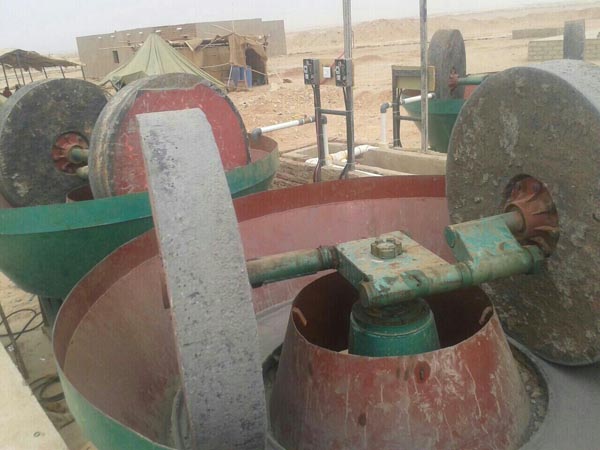

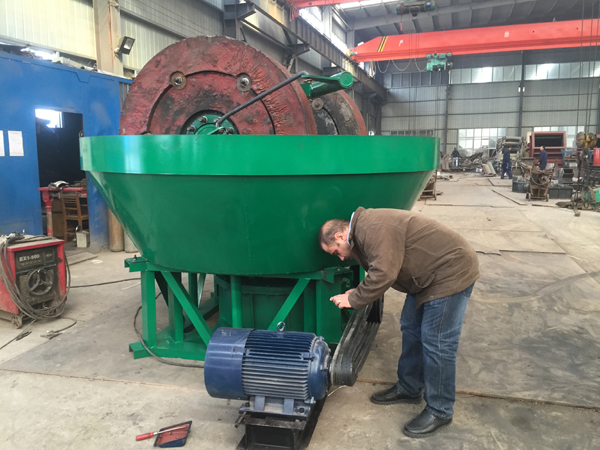

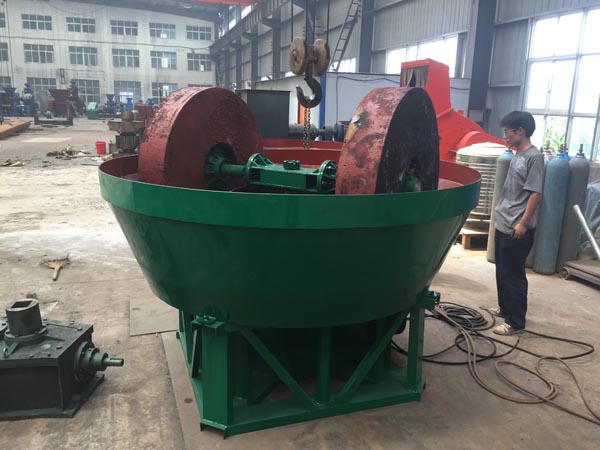

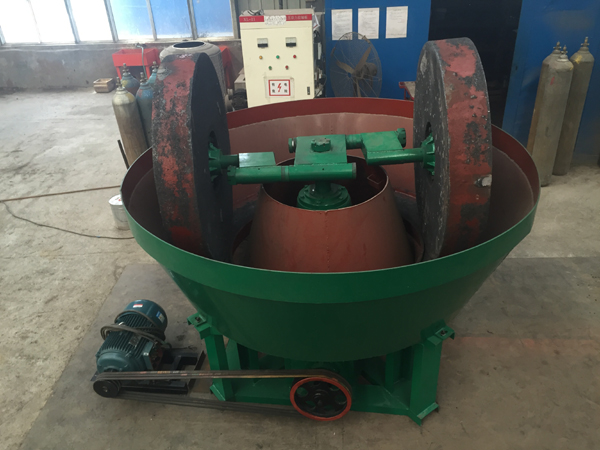

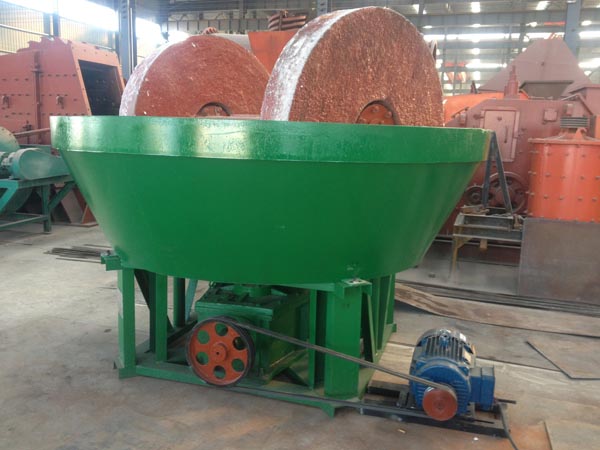

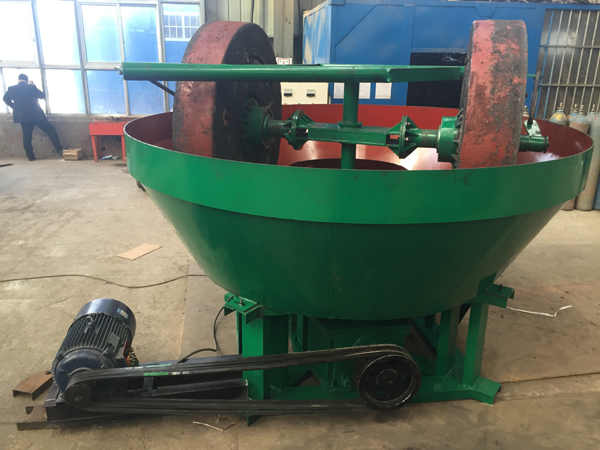

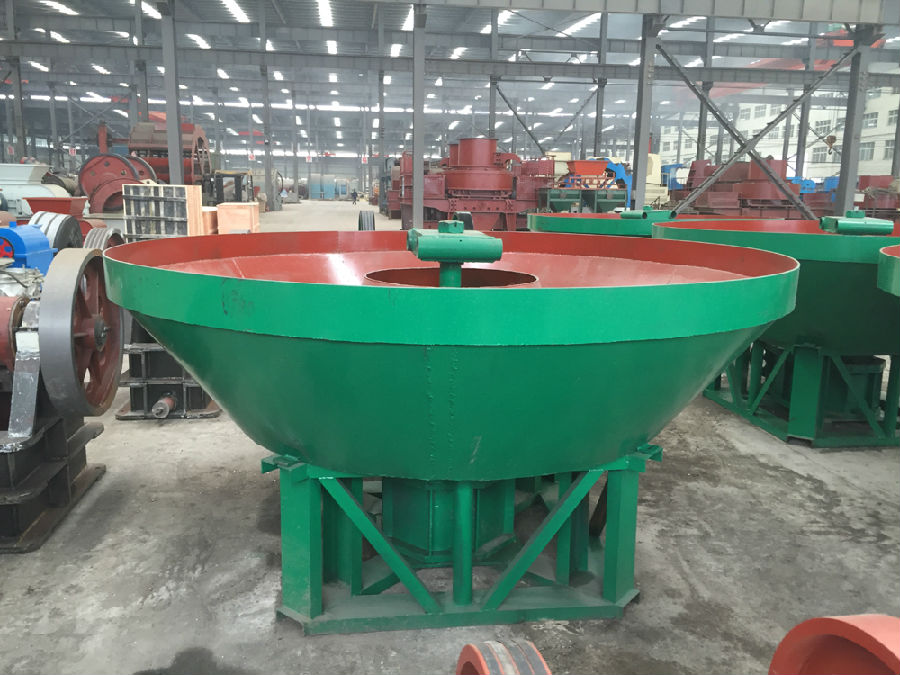

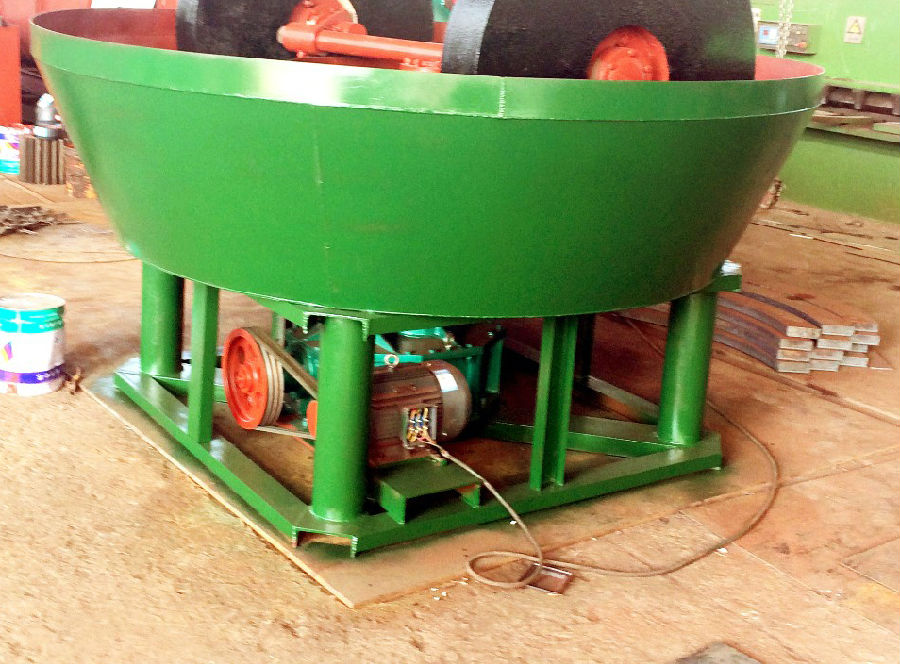

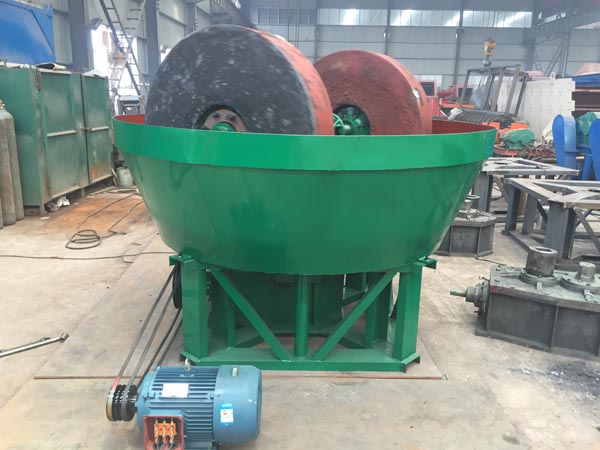

wet pan mill

wet pan mill

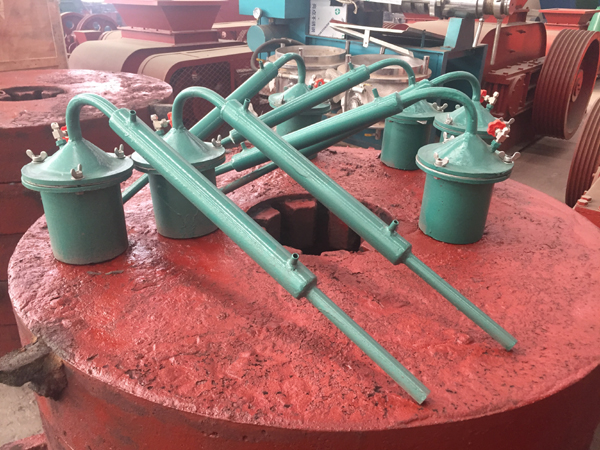

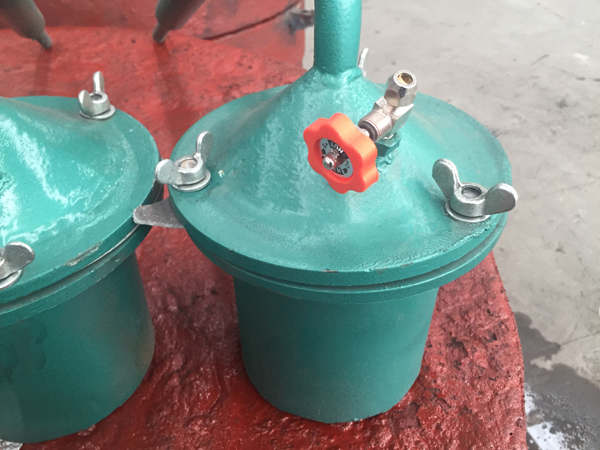

Mercury steamer














The wet pan mill is a new mill, small investment, high yield, the production cost is low, good benefits.

The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.

Use and Maintenance of wet pan mill/gold grinding machine:


1.The normal operation of the mill, before they start feeding.


2.this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.


3.should be uniform feeding not erratic, it is best to use the feeder.


4.bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.


5.regular checks of the various parts of the screw is loose.


6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts.


7.mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.

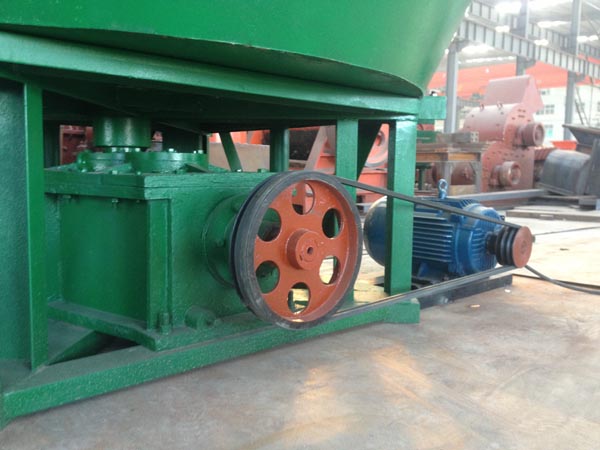

8.machine maintenance, to ensure safety, you must remove the motor belt.

Technical Parameter of wet pan mill/gold grinding machine:

Model

Specification

Input size(mm)

Rotate Speed (r/min)

Powder(kw)

Weight(t)

1600A

1600×400×200×500±20mm

<30mm

20-22

25KW

14.5

1500A

1500×350×200×460±20mm

20-22

22KW

13.5

1500B

1500×350×150×460±20mm

20-22

22KW

12.3

1500C

1500×300×150×420±20mm

20-22

22KW

11.3

1400A

1400×250×150×350±20mm

16-18

18.5kw

8.5

1400B

1400×250×150×350±20mm

21-23

18.5kw

8.5

1350A

1350×250×150×350±20mm

16-18

18.5kw

8

1350B

1350×250×150×350±20mm

21-23

18.5kw

8

1300A

1300×250×150×350±20mm

16-18

15kw

7.5

1300B

1300×250×150×350±20mm

21-23

15kw

7.5

1200A

1200×200×80×250±20mm

17-19

7.5kw

5.5

1200B

1200×200×80×250±20mm

23-25

7.5kw

5.5

1100A

1100×200×80×250±20mm

17-19

7.5kw

5

1100B

1100×200×80×250±20mm

23-25

7.5kw

5

1000

1000×200×80×250±20mm

13-15

5.5kw

4.5


[Keywords: wet pan mill]
