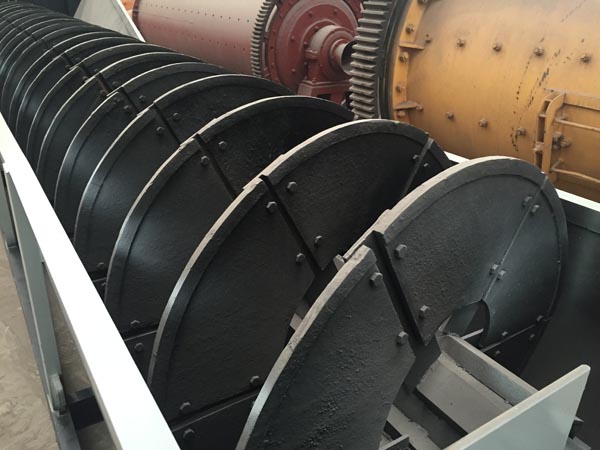

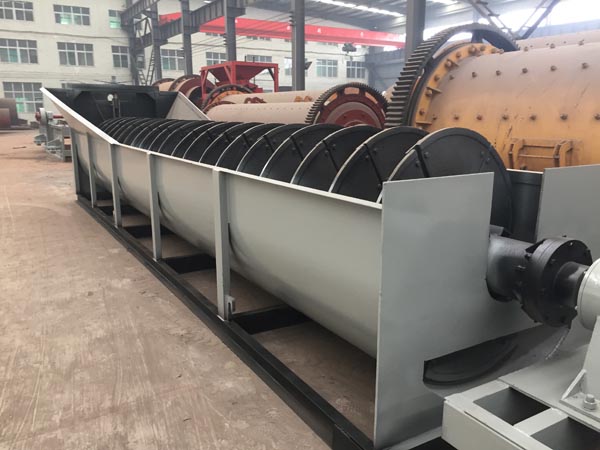

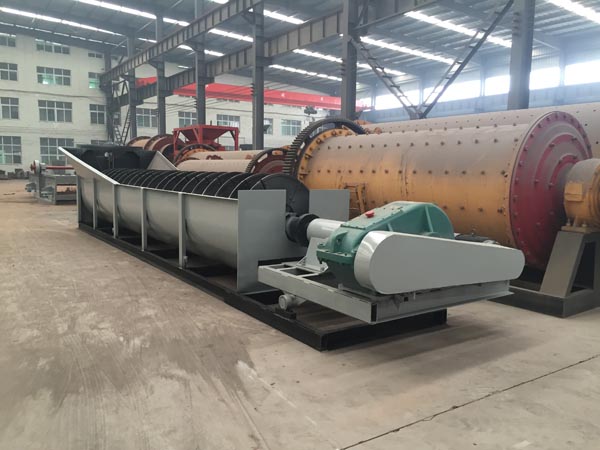

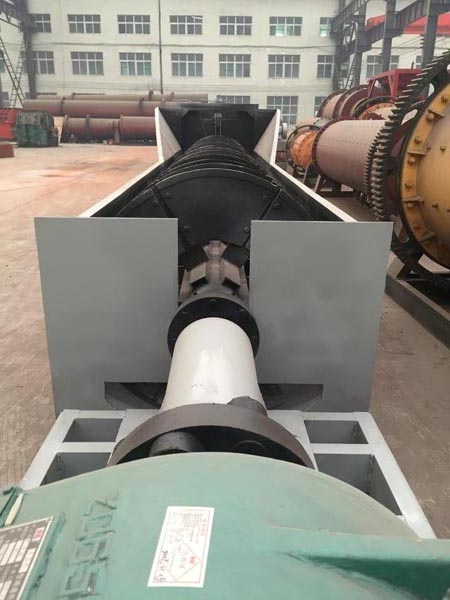

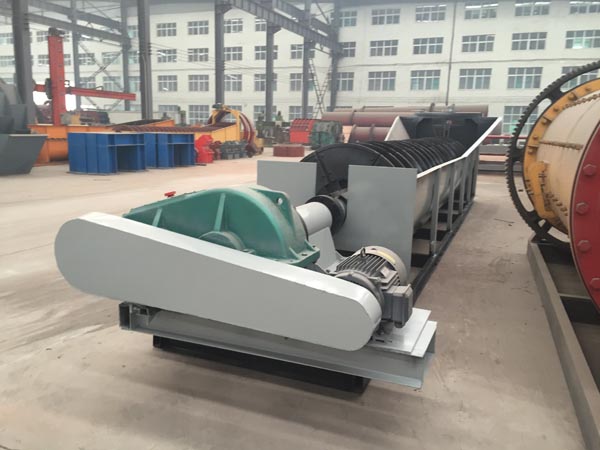

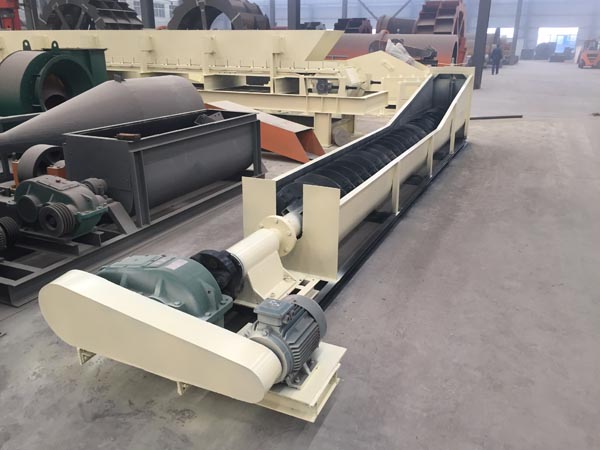

Spiral ore washer


The introduce of spiral ore washer:

Ore washer is used for cleaning sediment of iron, manganese, limestone, or tin that contains much mud before mine selection. The main functions of this wash mine machine are mixing, washing, separating and desliming minerals. It is also applied in construction or power station project for cleaning stone with washing hydraulic pressure less than 147-196kpa.

Main Technical Parameters of Spiral Ore Washer

Type

Model

Specifications

Screw

Diameter
(mm)

Selected

Particles
(mm)

Water

Consumption
(T/h)

Production

Capacity
(t)

Motor Power

(kw)

Overall Dimensions

(L×W×G)
mm

Weight
( kg)

Light Single

spiral

XL-508

508

≤10

14-88

20

705

8000×2343×1530

2670

XL-610

610

≤10

14-165

50

705

8000×2490×1530

3800

XL-762

762

≤10

18-124

75

11-15

9070×2650×1638

5225

XL-914

914

≤10

18-162

100

11-15

9070×2650×1638

6370

XL-1118

1118

≤10

27-333

175

30

9070×2830×1900

9800

Light Double

Helix

2XL-762

762

≤10

40-250

140

2×11

11580×3965×2370

7440

2XL-914

914

≤10

105-620

200

215

9070×3300×1638

9531

2XL-1118

1118

≤10

125-1400

350

222

9070×3890×1900

16700

Heavy Single

spiral

XLZ-762

762

≤60

355-450

80-125

22

11580×5226×2370

9800

XLZ-914

914

≤60

400-600

125-175

30

6980×1200×1340

11800

XLZ-1118

1118

≤75

500-750

180-250

37

7400×1380×1950

13900

Heavy Double

spiral

2XLZ-762

762

≤60

600-800

100-150

2×22

6980×2019×1340

16800

2XLZ-914

914

≤60

700-900

150-200

2×30

7120×2146×1590

20800

2XLZ-1118

1118

≤75

900-1100

200-300

2×37

8500×2861×2150

23870
