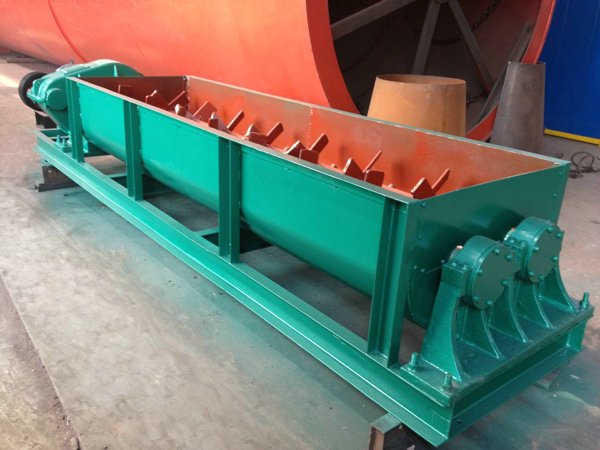

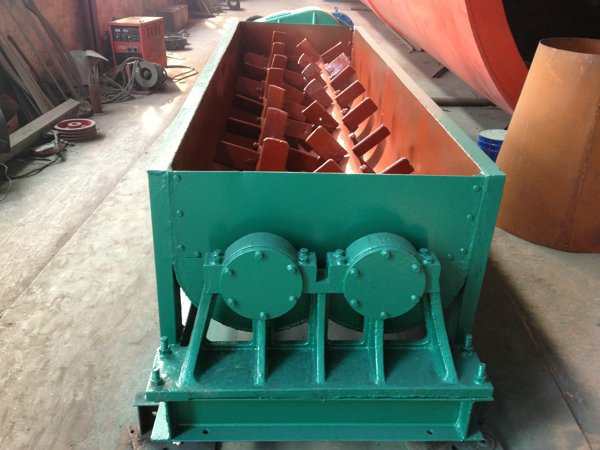

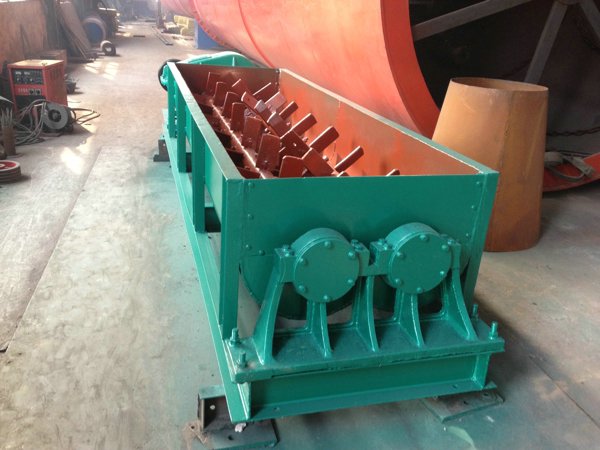

Double shaft mixing machine

pre next

This machine is used to stir the mixture of raw materials.it is the preparatory work for molding machine,its purpose is to evenly stir the mixture and make it more densely.This dualshaft mixer is mainly used for various powdery materials, such as clay, shale, cola gangue and fly ash, etc, which can well stir materials. It is the important equipment in brick making production.

Working principle:

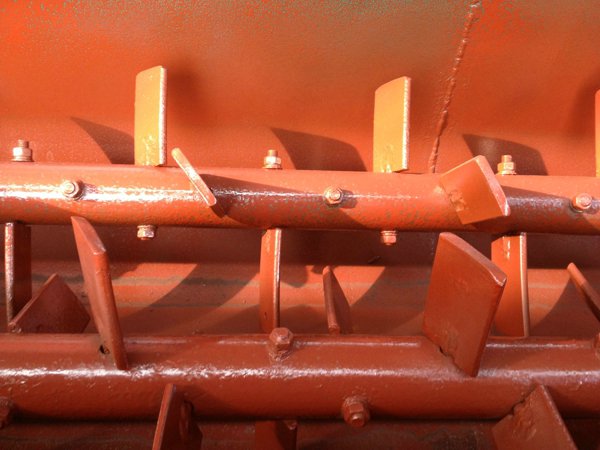

It uses two root of spiral axle by symmetric rotation, when conveying dry ash powder materials, add water synchronously, stir evenly humidifying dry ash, powder materials. Then loading into other transportation or conveying equipment.

Main Technical Parameter of JB double shaft mixing machine

Type	Output (m3/h)	Speed of main shaft(r/min)	Matched power(kw)	Overall dimensions(LWH)(mm)
JB200	20-25	60	22kw	36801300960
JB250	25-28	60	22kw	41801300960
JB300	30-35	60	30kw	46801300960
JB350	30-40	60	45kw	51801300960
