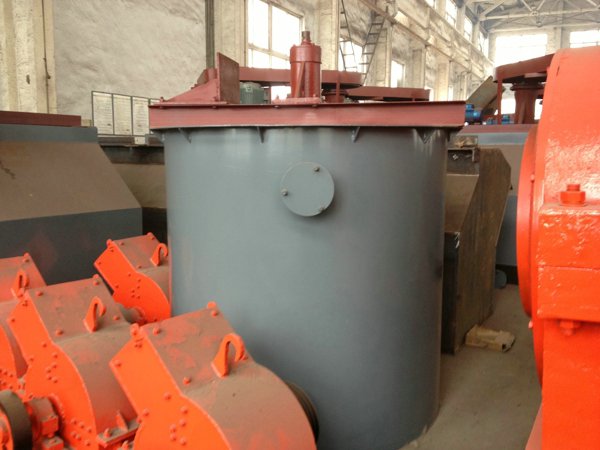

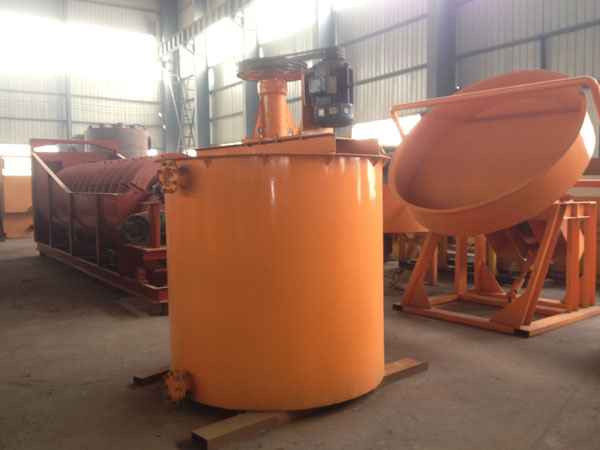

Mining mixer is used for mixing pulp before flotating separation work, which mixes the pulp with medicament sufficiently for mineral selection. The mixing tank can also used for mixing other non-metallic minerals. It is applied in the material with density not higher than 30% (calculated by weight) and fixed material size less than 1mm. It is flat-bottomed barrel with mechnical mixing method by radiant circular spiral impeller.
Main Technical Parameters of Mixer
Inner Chute Dimension | Valid cubage(m)3 | Blender | Motor | Overal Dimension | Weight (kg) | ||||
Diameter(mm) | Height(mm) | Diameter(mm) | Rotating speed (r/min) | Model | Power(kw) | Total weight(mm) | Max. length(mm) | ||
1000 | 1000 | 0.58 | 240 | 530 | Y100L-6 | 1.5 | 1665 | 1300 | 685 |
1500 | 1500 | 2.2 | 400 | 320 | Y132S-6 | 3 | 2386 | 1690 | 861 |
2000 | 2000 | 5.6 | 550 | 230 | Y132ml-6 | 4 | 3046 | 2381 | 1240 |
2500 | 2500 | 11.2 | 625 | 230 | Y160M-6 | 7.5 | 3546 | 2881 | 3462 |
3000 | 3000 | 19.1 | 700 | 210 | Y200L2-8 | 22 | 4325 | 3266 | 4296 |
