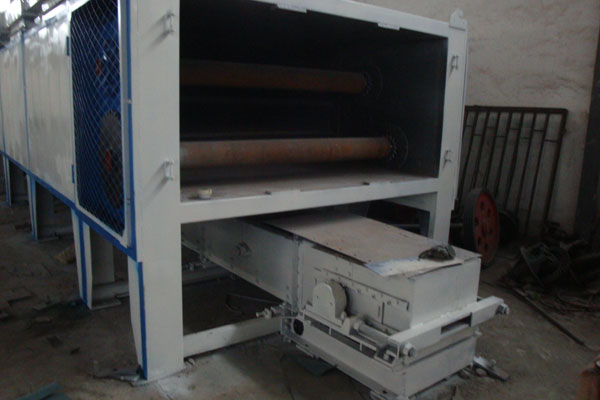

Mesh Belt Drying Machine


Detailed Product Description

mesh belt dryer for many mineral ball
1. drying equipment for batch ,mainly for drying of plate
2.strip and granular material

mesh belt dryer for many mineral ball

Use :the mesh belt dryer is a kind of drying equipment for batch ,it is mainly for drying of plate ,strip and granular materials withbetter ventilation,the conveyor directly transports finished balls to the pallet conveyor ,and the scraping plate on the upper end of the pallet conveyor arranges these balls evenly on the dryer ,improving ventilation property of the balls ,achieving drying effect ,ensuring continuous pproduction of all equipment .

Main principle :the principle is as follows :laid evenly on the mesh belt ,driven by the transmission device ,the materials move back and forth in the dryer ,where hot wind passes through the materials and the water vapor is diacharged from the weep hole .

Features :

1.small space to take

2.low investment

3.high efficiency

4.large output and high evaporation strength

5.standardized production:the number of segments can be increased according to the output .

Main Technical Parameter :

Model

WD6

WD8

WD10

WD12

WD16

WD20

WD24

WD30

width of Net beltmm

600

800

1000

1200

1600

2000

2400

3000

Length of drying sectionm

6-12

6-12

6-16

8-16

8-22

10-26

12-30

12-40

Length of feeding sectionm

1

1

1

1

1

1.5

1.5

2

Length of transmitting sectionm

1

1

1

1

1

1.5

1.5

2

Drying aream2

3.6-36

4.8-48

6-80

7.2-96

12.8-105.6

20-260

28.8-360

36-600

Unit mumber

1-5

Interlamellar spacing (mm)

400-600

Carrying capacity

90-200 Kg/m2

Operation temperature (°C)

carbon steel≤400 C°stainless steel≤600 C°

Drying strength((kgH2O/h)

5-20kg H2O/m2.h

heat source

hot windelectricitysteam

Running speed

0.06-1m/min

Transmission powder(kw)

1.1-2.2

1.1-2.2

1.1-2.2

1.1-3

1.5-3

1.5-4

3-7.5

5-11

Matching equipment

conveying equipmentair heating furnacedust removing equipmentdraught fan etc.
