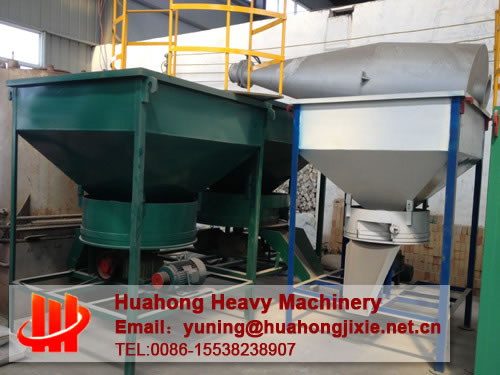

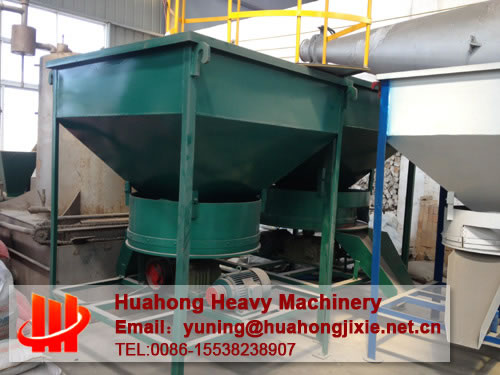

Disc feeder introduction:
Disc feeder is applicable for feeding powdery ore material less than 20mm.
Disc feeder is composed of driving device, feeder unit, belt conveyor for metering use and metering device. Feeder and belt conveyor are drived by a set of driving device. The driving device??s electromagnetic clutch can switch off or switch on the feeder. There is speed inspecting device to test the belt conveyor speed which shall be less than 1m/s, and measuring bar to adjust the weighing roller's position to prevent deflection.
Main technical parameters of disc feeder:
Model | Form | Disc diameter (mm) | Capacity (m3/h) | Disc rotation speed (r/min) | Material size (mm) | Motor (kw) |
600 | Seat-cover type | Ø 600 | 0.69-3.9 | 8 | 25 | Y90L-4 1.1KW |
800 | Seat-cover type | Ø 800 | 1.6-7 | 8 | 40 | Y90L-4 1.5KW |
1000 | Seat-cover type | Ø 1000 | 4.2-12 | 8 | 50 | Y100L-4 2.2KW |
1200 | Seat-cover type | Ø 1250 | 6-15 | 7.5 | 50 | Y112L-4 4KW |
1500 | Seat-cover type | Ø 1500 | 12-21 | 7.5 | 50 | Y120L-4 4KW |
2000 | Seat-cover type | Ø 2000 | 18-32 | 7.5 | 50 | Y132L-4 7.5KW |
