shredder

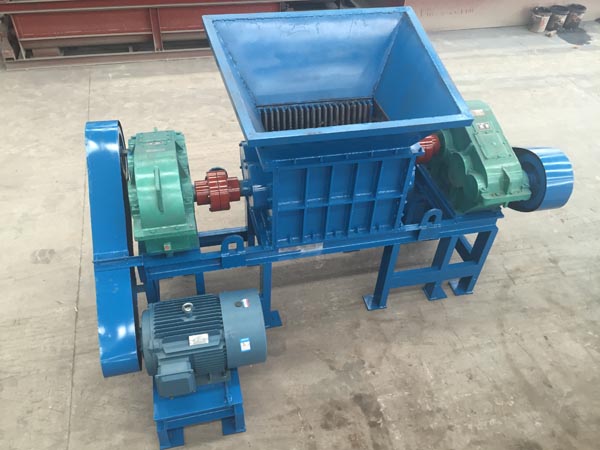

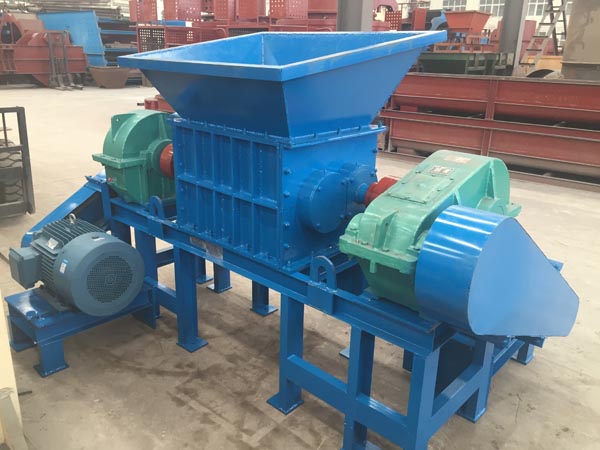

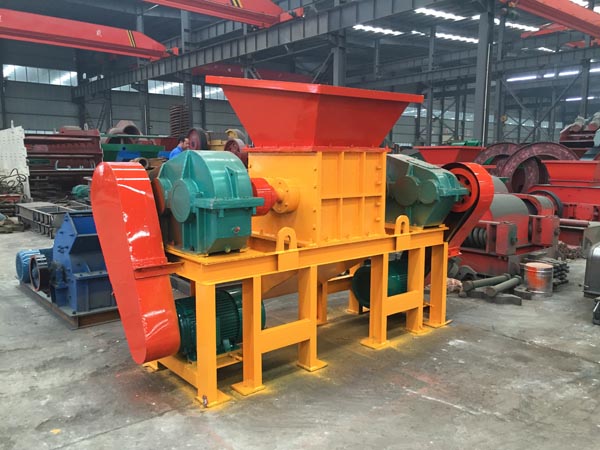

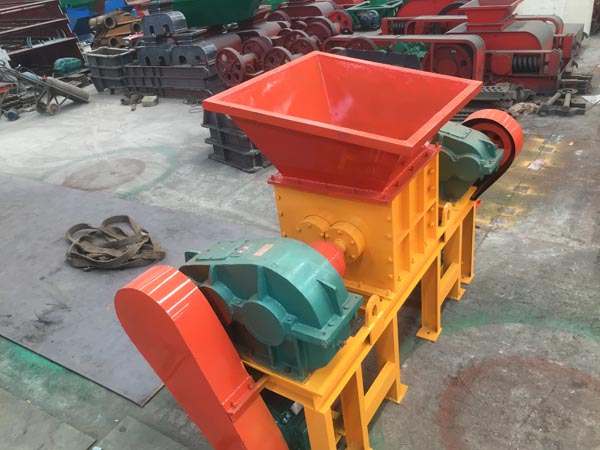

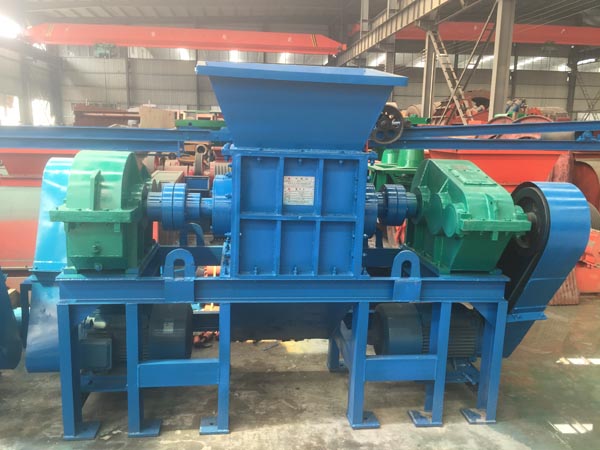

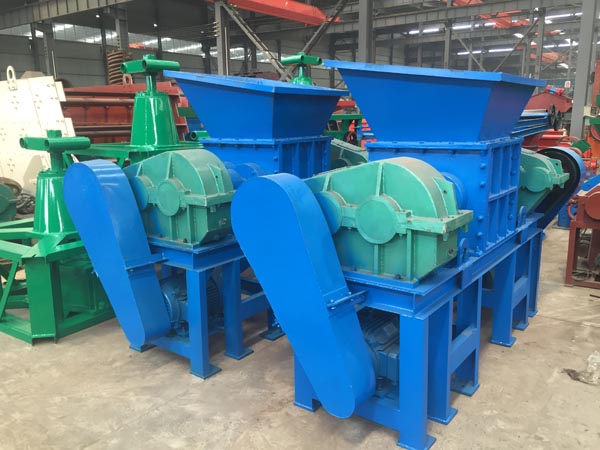

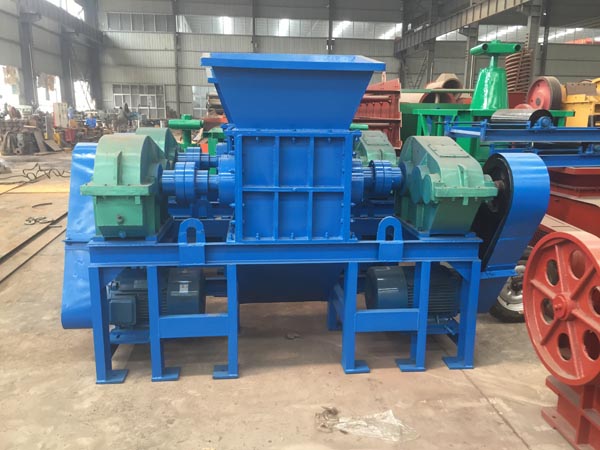

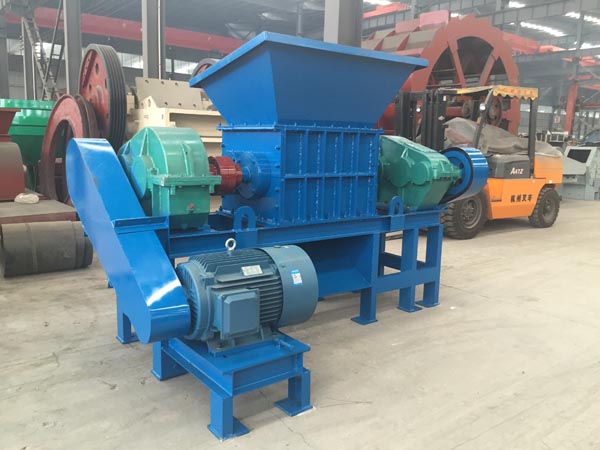

Application of double shaft shredder machine

Feature of double shaft shredder machine

1.Low wear due to low crushing speeds and few moving parts.

2.Very low energy consumption and low maintenance costs.

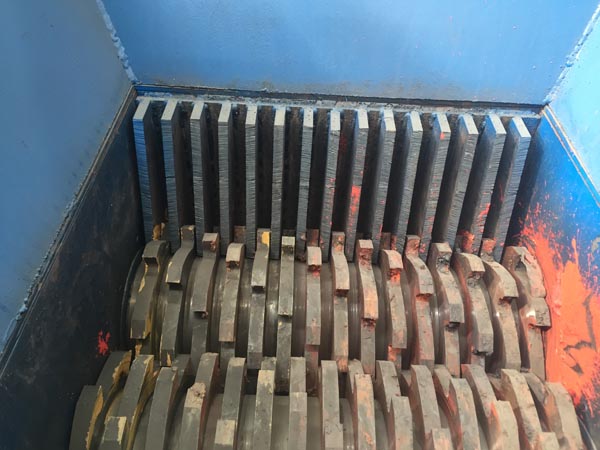

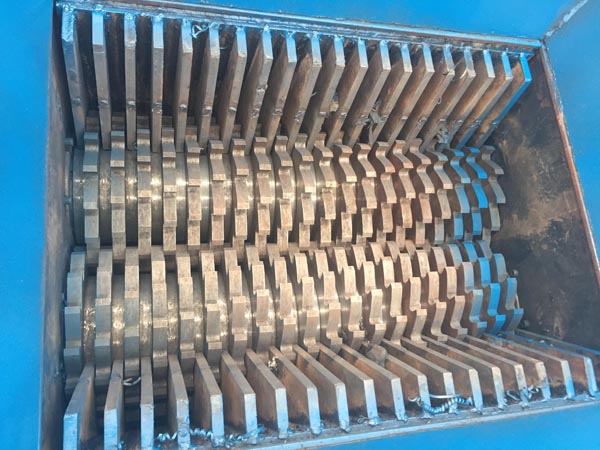

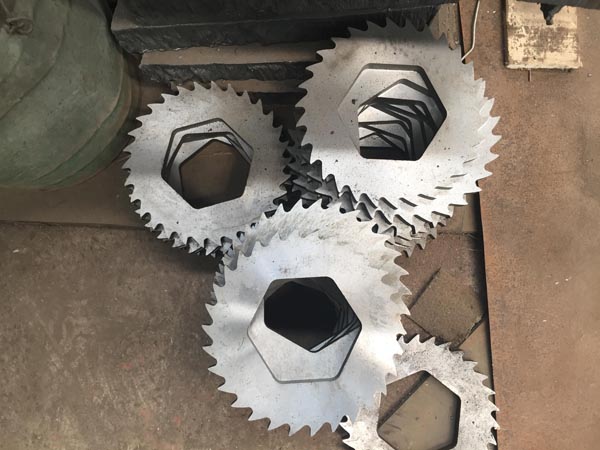

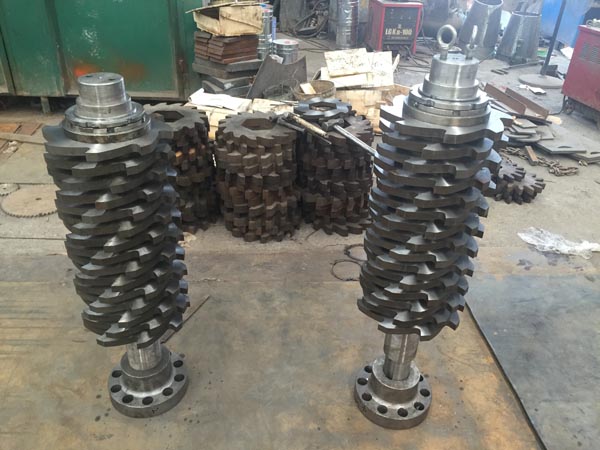

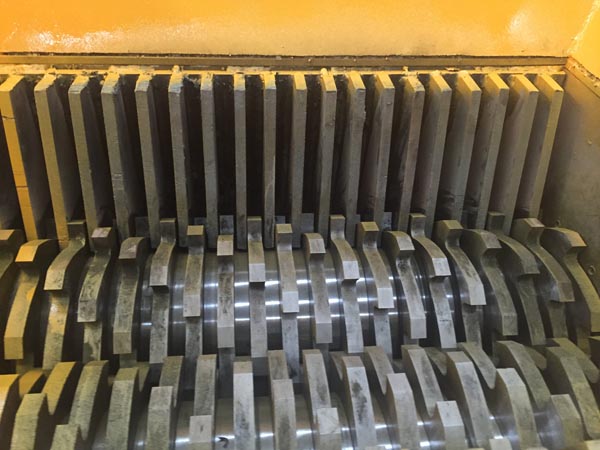

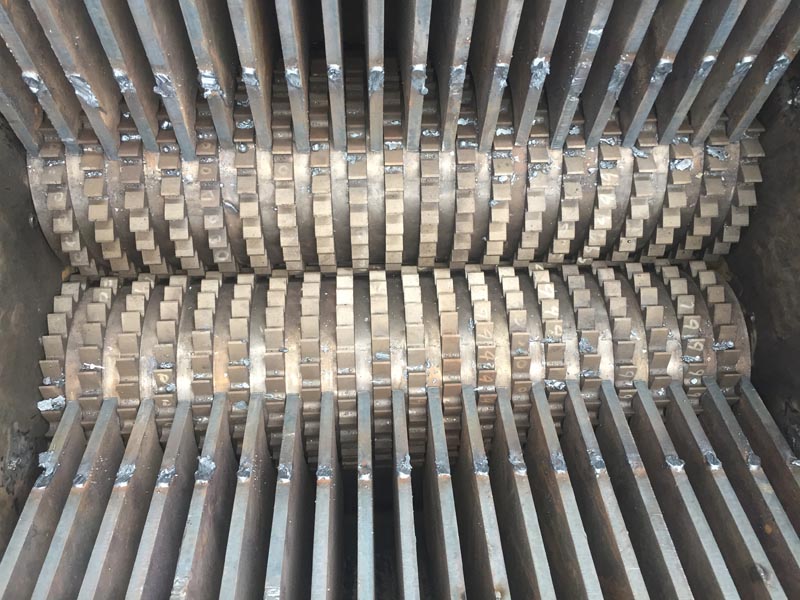

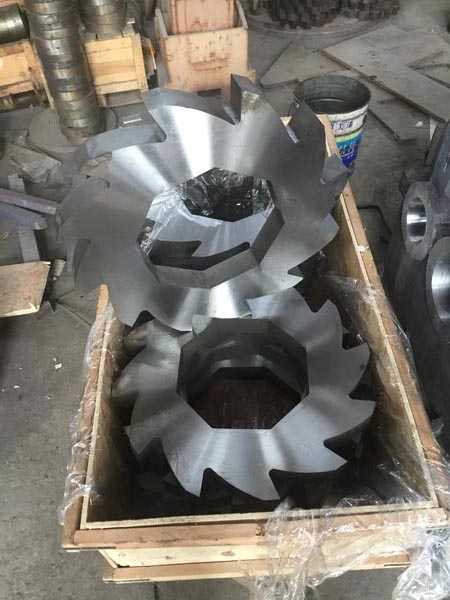

3.Easy replaceable cutting tools with reversible edges .

4.Adopts solid construction and the densely covered stiffening plate ensures the fortification of

the box.

5.Metal crushing equipment can be equipped with conveyor belt feeding equipment .

Technicals of metal shredder machine:

Model	Power (kw)	Number of revolving knife	Thickness of knife (mm)	Diameter of knife (mm)	Number of blade	Dimension of crushing chamber (mm)	Output (kg/h)	Outline dimension LWH)	Weight (kg)
600	11	12	50	φ280	5	600*550	300~800	300020002100	About 2800
600	15	12	50	φ280	5	600*550	300~800	300020002100	About 2900
800	22	16	50	φ300	5	800*600	500~1500	360020002420	About 4100
800	37	16	50	φ300	5	800*600	500~1500	360020002420	About 4300
1000	2×30	20	50	φ350	5	1000*700	1000~2000	350020002820	About 6500
1200	2*30	24	50	φ400	5	1200*800	1500~2500	380020002820	About 7000
1600	2×37	22	70	φ450	5	1600*900	2000~3000	470020003000	About 10500
