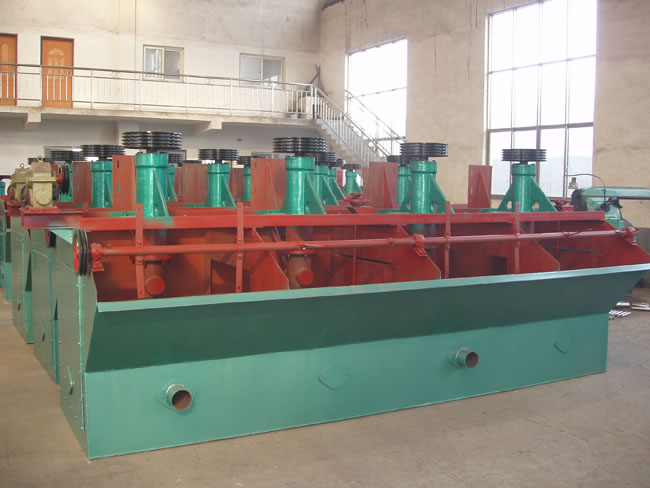

Gold Ore Separating Floattion Machine -- CHINA Huahong

Specifications

Floatation Machine Ag Gold ore
1.With pulp surface-controlled device
2.Large inspiratory volume
3.High flotation efficienc

Zhengzhou Huahong Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Stone and mining Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,rotary drying equipments and rotary kiln , Lime and Cement production equipment and other equipments. The company welcomes all friends from home and abroad to visit Huahong Heavy company to check the high quality products. The service center sincerely hopes that we can have a successful cooperation Description of Flotation Machine: Our Flotation Machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties, which can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine. It features: high inhalation, low power. Each chute can inhale gas, sink magma, separate. There is no need of accessory equipments horizontal equipment. It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface. It is easy to adjust. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.

The working principle of flotation machine:

When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re_mis with air. The remained slurry flows to the next trough until becomes residue.

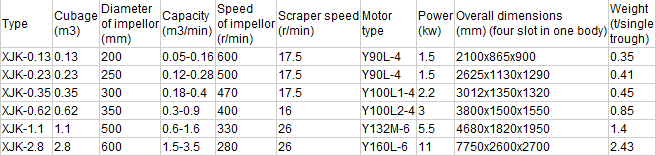

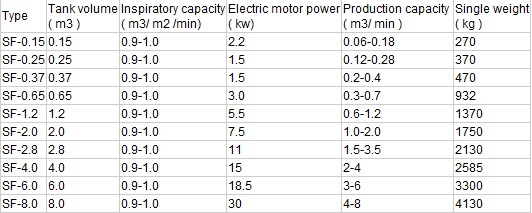

Specifications of Huahong Flotation Machine:

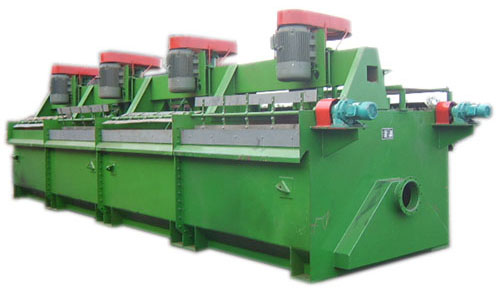

Huahong Flotation MachineProduct description:

flotation machine applied to the separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals. The device has the following characteristics: inhale large, low power consumption.

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
