Top quality jaw crusher,jaw crusher machine,stone crusher,stone crusher machine

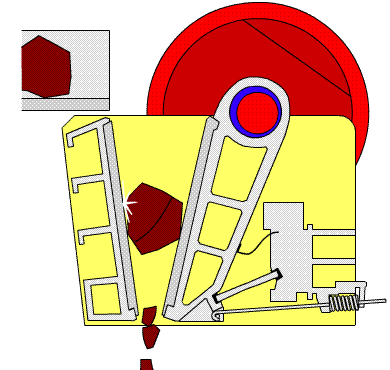

Working principle of Stone Crusher:

The motor transmits power through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when moving jaw moves.So the moving jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

Jaw Crusher Note:
The aircraft should be checked before use each part of fasteners, particularly bolts lubricated parts and ministries, all lubricated parts need to maintain sufficient oil, will be fastening bolts loose, and then clean up broken cavity residue, and then start production of in normal work, note that even under the material may not be under a foot, for a long time without adding, too much can cause mechanical blockage. Jaw movement and static jaw plates, side panels, roof of wearing parts, taking care to maintain!

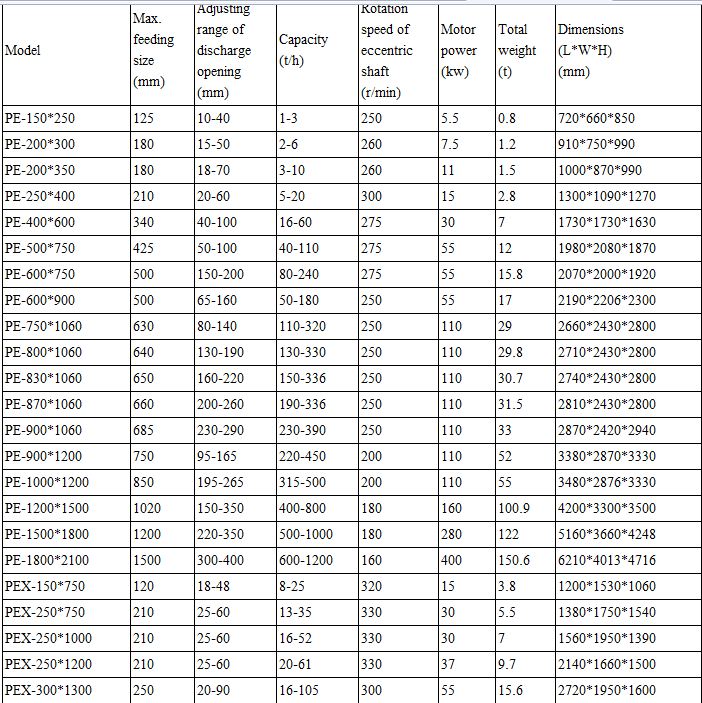

Main technology parameter of jaw crusher:

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
