Heavy hammer box crusher from ISO,certification manufacturer

Box crusher hammer weight of a single large rotor, high speed and large inertia hammer, fully embodies the big break is small, the advantage to re-broken light, and with the ultra large stone Crusher to erode the unique ability.

Box crusher working principle of:
Stone from the machines directly into the upper high-speed rotating wheel, under the action of centrifugal forces at high speed, resulting in high-speed impact and high-density crushed stone in the fight against each other, then they will in the turntable and the chassis caused by movement between the vortex many times against each other, friction, crushing, grinding up into the size required.

Box crusher Structure and advantages:
Box crusher frame part of the structure for the third, only to open the back casing crusher, hammer plate can be replaced, broken plates, linings and other repair and maintenance operations. Box crusher strong interchangeability of parts, less variety of wearing parts, spare parts procurement and management easy. Hydraulic opening device for opening and closing of case, can effectively reduce maintenance labor intensity, improve maintenance efficiency and reduce maintenance time. Box crusher crushing machine monitoring system can at any time to monitor the operation status monitor signals can interlock with the main control system, ensure the safe, reliable operation.
Box crusher motor drive system with mechanical coupling + V + + crusher-belt approach can improve the motor starting performance, smooth start the motor running. Belt drive system can play a dual function of overload protection, motor drive system requires low power, significantly reduce operating costs. This driver program is economical and good performance, safe and reliable driver program.

"Advantage" of box crusher:
1. Able to handle large moisture content of materials, to prevent clogging the crusher.
2. Crusher Crusher is suited to the soft material they apply to very large hardness of the material.
3. Can facilitate flexible adjustment of the particle size, wide tuning range.
4. Wear and tear of wearing parts than a small hammer crusher, metal high utilization.
5. Easy replacement of spare parts, maintenance costs reduced.

Box Crusher Features:
Box crusher in the current development of new, fine stone equipment, is currently the world's widely used to replace cone crushers, rolling machine, ball mill models. Novel structure, a unique, stable operation. With the shaping functions, and products like the establishment parties, packing density, the production process, form a protective stone to the bottom of the fuselage without wear and durability. A small amount of wear parts are made with special hard wear-resistant materials, small size, light weight, easy to replace parts. Box crusher rotor disk in the drive motor, the drive to do high-speed circular motion hammer, when material into the crushing chamber, the large material stacked on the machine dedicated section on the central fear,
Size larger than required by the broken material with new material tangent direction along the hammer hit counter board to once again broken, so thick, the broken step, and finally to meet the requirements of materials are integrated by the cell after the grid plate unloading
"Features":
1. Feed a large size, reduction ratio, the material evenly.
2. Yield, 85% of granular products, fully meet the requirements.
3. Box crusher installation Adjustable hammer shaft, hammer and long life.
4. Adjustable grid size, product size control, particle shape well.
5. Box crusher chassis can be turned over to maintenance easier.
6. Side handle bolts, impact resistance, abrasion resistance
7. High yield and stable performance.
8. Thick, the broken step, simplify process.
9. High wear-resistant materials, hammer, grate plate and counter plate, longer life.
10. Supporting low power, low energy consumption, easy maintenance, less wearing parts.
"Scope":
1. Apply to the following strength in the upper range of hardness of materials and secondary crushing.
2. Especially suitable for mining, building materials, chemical industry, metallurgy industry, crushing of materials used.

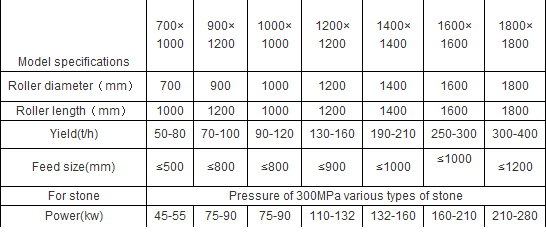

The main parameter of the box crusher:
