High Production Reputable Raymond Mill

usage and application of the raymond mill:
The Raymond mill is used to grind materials in the fields of building materials, mining, metallurgy and chemical industry. The materials must be non-flammable and non-explosive materials such as: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate, manganese ore, iron ore, glass, ceram, active carbon, carbon black, fireproof materials, heat preservation materials, chemical materials and so on(300 kinds of materials). The materials should have the hardness less than 7 in Moh's scale and humidity less than 6 percent. The granularity of the end products can be adjusted from 30 to 325 meshes.

working principle of the raymond mill:
After the materials enter the grinding chamber of the main frame, the grinding roller swings outward and presses closely upon the grinding ring due to the centrifugal force generated by the rotation of the main shaft. The blade carries materials to the space between the grinding roller and grinding ring, and materials are ground as the grinding roller rolls.
After being ground, the powder is selected by classifier via the cycle wind of the blower and the rough powder will be back to the grinding chamber for regrinding. The qualified powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the machine work normally. The remained airflow comes out after purification by dust filter.

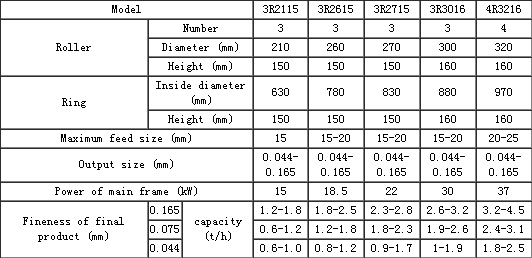

Main Specifications of the raymond mill：

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.

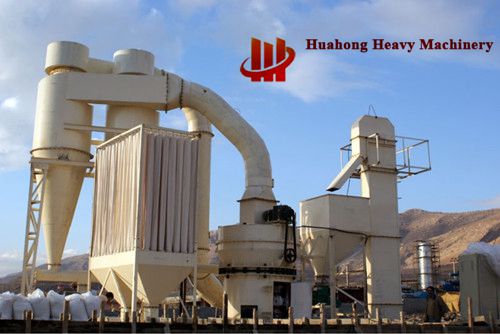

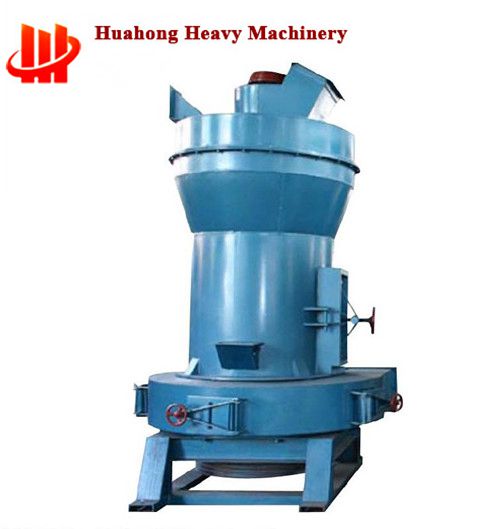

The pictures of the raymond mill:

Note:if you are interested in the equipments, please submit you requirements to us, we will contact you as soon as possible.welcome to our company to know more out us.
