Double Roller Crusher

Roller Crusher Introduction:
Roller crusher is mainly applied in cement, metallurgy, chemical, electric power, coal and other industries for crushing various materials of medium hardness like limestone, slag, coke, coal and other materials. According to the numbers of the roller, it is divided into single roller crusher, double rollers crusher and multi-rollers crusher. It has simple structure, less phenomenon of over-crushing, and reliable operation.

It mainly consists of frame, rotary device, crushing roller, adjustment device and spring safety device, etc.

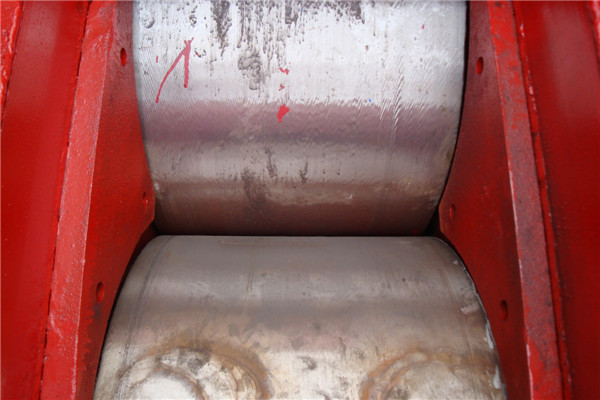

When working, the two rollers rotate toward each other, and the minerals will enter between them, by action of the friction, the minerals will be sent into the crushing space for pressing. Due to the gravity of minerals, they will be discharged out from the gap of two rollers. And the minimum distance of the two rollers is the width of the discharge size.
Adjustment of the discharging size: There is a wedge or gasket adjustment device between two rollers. At the top of the wedge adjustment device, there is an adjusting bolt. When the bolt pull wedge upward, the wedge will make the movable roller jack away from the fixed roller, thus the gap of two rollers become larger, so as the discharging size. Of course, under the reversed situations, it will become smaller. For gasket adjustment device, it adjusts the discharging size by means of increasing and decreasing the pieces or thickness of the gaskets. Increasing pieces will make the gap become larger, the reverse is smaller.

Features and Benefits：
1. Simple structure, reliable operation;
2. Low cost and less over-crushing phenomenon;
3. Adjustable discharging size, and high economic benefits.

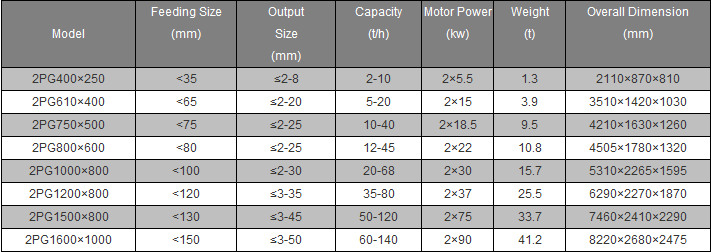

Main Technical Parameters:

Note:if you are interested in the equipment,please submit your requirements to us.Welcome to visit our company.
