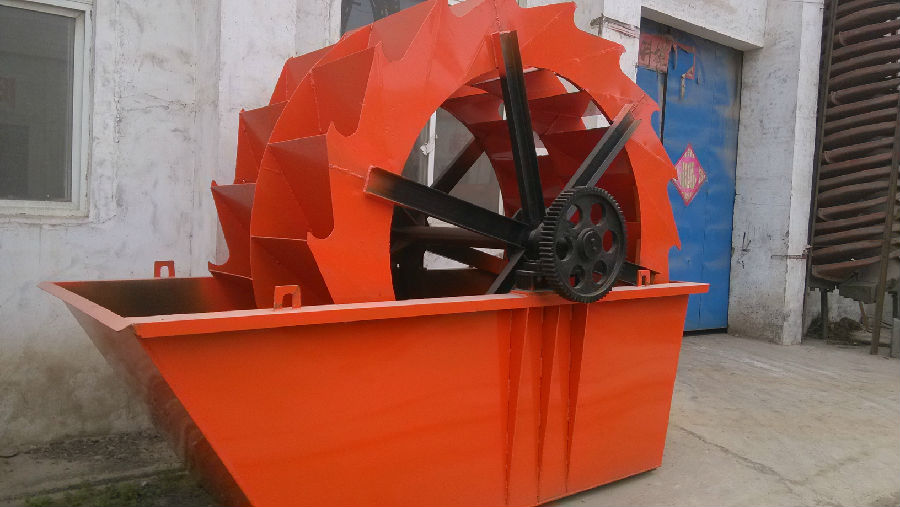

The XS series bucket wheel sand washing machine

The XS seriesBucket wheel sand washing machine is a kind of cleaning equipment, to clean the limestone clay sand separation which is used with an efficient sand washing equipment,.novel sealing structure, reliable transmission device, ensuring the cleaningeffect of dehydration.

Bucket wheel sand washing machine is widely used in construction sites,sand factory, hydropower station dam site and many other industries.It has the advantage of high cleanliness, reasonable structure, large capacity, low power consumption, less loss of sand washing sand process,especially the sand washing machine transmission parts with water and sand isolation It is the best choice for domestic washing sand industry upgrading with the failure rate significantly lower than currently common sand washing machine.

Working principle of wheel sand washing machine

When the wheel sand washing machine works,motor through the belt, reducer, gear reducer drives the impeller rotates slowly,sand enters into the washing groove, rolling in the impeller drive,and mutual grinding, removing the gravel covered surface impurities, anddestruction the water vapor coated layer of sand, in order to facilitate the dehydration.At the same time, adding water, forming strong currents, in the same time small proportion of the impurities and foreign being awayand forming the overflow outlet washing tank discharge, comp

lete cleaning effect.Clean gravel from the leaves away, finally the sand into sand trough from the rotation of the impeller, complete sand cleaning effect.

Features of sand washing machine:

1. This machine's structure is simple. The impeller drive device is seperated with water and the watered materiel avoiding that the bearing is damaged by deeply in water, sand, or contamination.

2. This machine has obvious advantages compared with screw sand washer. The details is as follows:

a. The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel'.

b. There is almost no wearing parts except screen mesh.

c. The machine usage life is long.

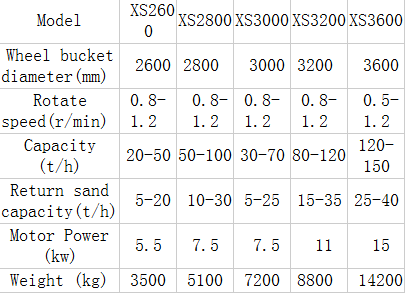

Main technical parameters:
