Grinding Mill for Raw Mill Plant .

In the Raw Mill plant, we use vertical grinding mill and Ball Mill for cement further grinding. At this stage,Vertical Mill works by using the pressure of cylinder leakage to break the materials; ball Mill is dependent on the steel ball grinding upon materials.
Zhengzhou Huahong Mining Machinery Equipment works with higher capacity and saves energy greatly by using an electrical automation system which optimizes the grinding process.
Apart in the Raw Mill plant, ball mill is also widely applied in the clinker grinding process. Here the cement clinker is grinded into fine powder together with other raw materials, such as gypsum.
How to Install and Maintain Spiral Classifier Media Choice of Ball Mill.

Supply scope:

1. Rotary part 1set
2. Feeding device 1set
3. Main bearing device 2sets
4. Discharging device 1set
5. Lining board and partition plant 1set
6. Driving device ( Bull gear, pinion and housing) 1Unit/set
7. Main motor 1Unit
8. Main reducer 1Unit
9. Auxiliary motor 1Unit
10. Auxiliary reducer 1Unit
11. Thin oil station 2PCS
12. Shaft coupling 1Unit/set
13. Base of motor and reducer 1Unit/set
14. Control part 1Unit

Working principle:

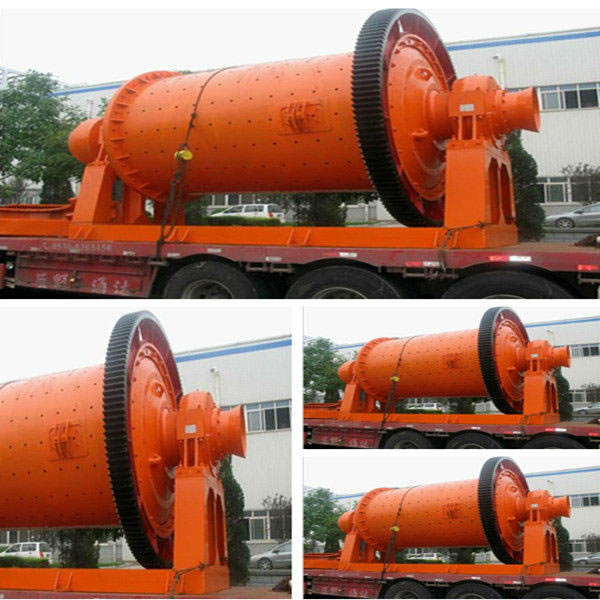

Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
